96BB2 Series

Catalog

SWITCH KEYPAD 16KEY 0.005A 12V

Part	Operational Life	Legend	Illumination	Key Type	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Legend Color	Ingress Protection	Termination Style	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Key Color	Number of Keys	Contact Rating @ Voltage	Switch Type	Output Type	Legend Type

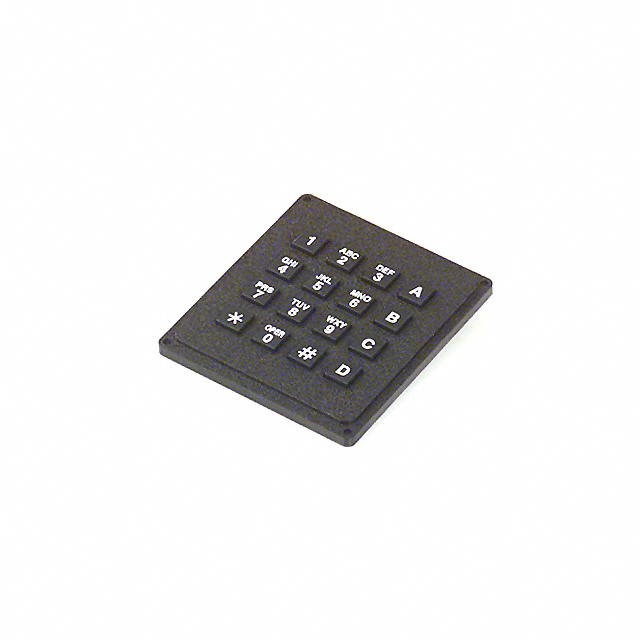

Grayhill Inc. 96BB2-056-R	1000000 Cycles	Telephone Format A ~ D	Non-Illuminated	Polymer	Panel Mount Rear	68.58 mm	63.5 mm	80 °C	-30 ░C	White	IP40	Pin Header	4	4	Black	16	0.005 A 12 VDC	Conductive Rubber	Matrix	Fixed
Grayhill Inc. 96BB2-006-R-EL	1000000 Cycles	Telephone Format A ~ D	Illuminated	Polymer	Panel Mount Rear	68.58 mm	63.5 mm	80 °C	-30 ░C	Black	IP40	Pin Header	4	4	White	16	0.005 A 12 VDC	Conductive Rubber	Matrix	Fixed

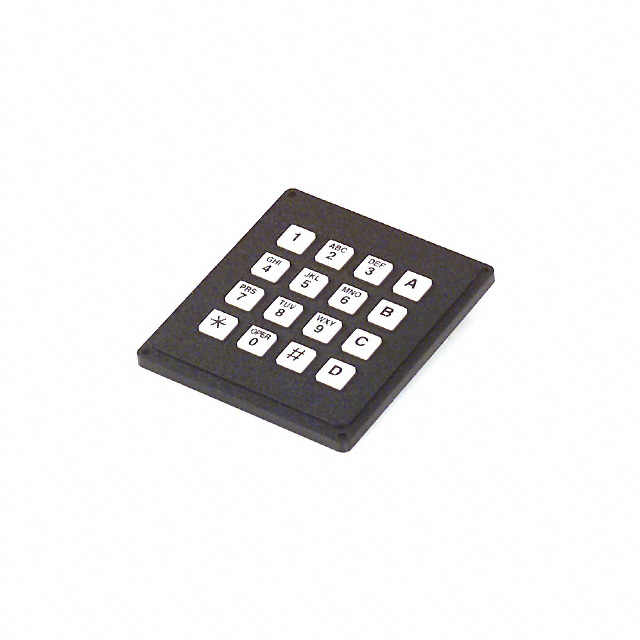

Grayhill Inc. 96BB2-006-R	1000000 Cycles	Telephone Format A ~ D	Non-Illuminated	Polymer	Panel Mount Rear	68.58 mm	63.5 mm	80 °C	-30 ░C	Black	IP40	Pin Header	4	4	White	16	0.005 A 12 VDC	Conductive Rubber	Matrix	Fixed
Grayhill Inc. 96BB2-008-F	1000000 Cycles	Telephone Format Function Keys	Non-Illuminated	Polymer	Panel Mount Front			80 °C	-30 ░C	Black	IP40	Pin Header	4	4	White	16	0.005 A 12 VDC	Conductive Rubber	Matrix	Fixed
Grayhill Inc. 96BB2-002-F	1000000 Cycles	0 ~ 9 A ~ F	Non-Illuminated	Polymer	Panel Mount Front			80 °C	-30 ░C	Black	IP40	Pin Header	4	4	White	16	0.005 A 12 VDC	Conductive Rubber	Matrix	Fixed
