E5J88 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 SIDE ENTRY UP THT
| Part | Features | Number of Ports | Number of Positions/Contacts | Termination | Tab Direction | Number of Rows | Ratings | LED Color | Orientation | Connector Type | Contact Finish | Contact Material | Shielding | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Board Lock | 1 | 8p8c (RJ45 Ethernet) | Solder | Up | 1 | Cat3 | Does Not Contain LED | 90 ° | Jack | Gold | Phosphor Bronze | EMI Finger Shielded | Through Hole | ||||||

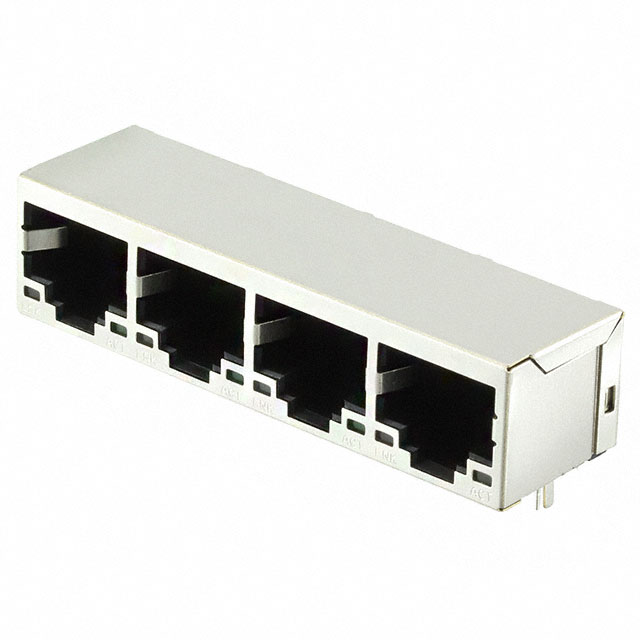

 Pulse Electronics | Board Guide | 4 | 8p8c (RJ45 Ethernet) | Solder | Down | 1 | Cat3 | Green Yellow - Green | 90 ° | Jack | Gold | Phosphor Bronze | Shielded | Through Hole | 0.38 µm | 15 µin | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | |
Pulse Electronics | Board Lock | 1 | 8p8c (RJ45 Ethernet) | Solder | User Selectable | 1 | Green - Green | Jack | Phosphor Bronze | Unshielded | Through Hole | Vertical |
