RL78/G1x Series
Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications
Manufacturer: Renesas Electronics Corporation
Catalog
Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications
...

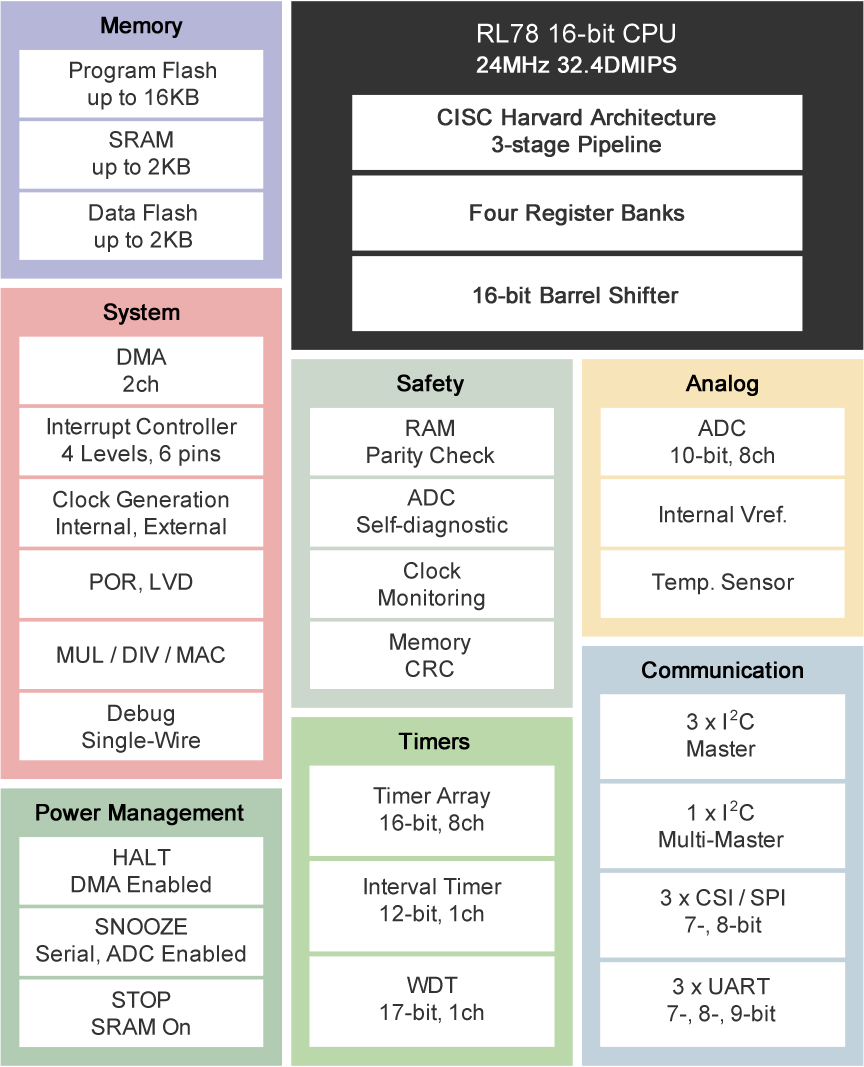

| Part | Connectivity | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | RAM Size | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Number of I/O | Program Memory Type | Core Size | Peripherals | Data Converters | EEPROM Size | Package / Case | Oscillator Type | Speed | Supplier Device Package | Program Memory Size | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | Data Converters [custom] | RAM Size | EEPROM Size | Supplier Device Package [x] | Supplier Device Package [y] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | CSI I2C UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 768 x 8 | 1.8 V | 5.5 V | 18 | FLASH | 16-Bit | DMA LVD POR PWM WDT | A/D 11x8/10b | 2K x 8 | 24-WFQFN Exposed Pad | Internal | 24 MHz | 24-HWQFN (4x4) | |||||||||||||
 Renesas Electronics Corporation | |||||||||||||||||||||||||||||||
 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 1.6 V | 5.5 V | 28 | FLASH | 16-Bit | DMA LVD POR PWM WDT | 10b 9x8 | 4K x 8 | 40-WFQFN Exposed Pad | Internal | 32 MHz | 48 KB | ||||||||||||||

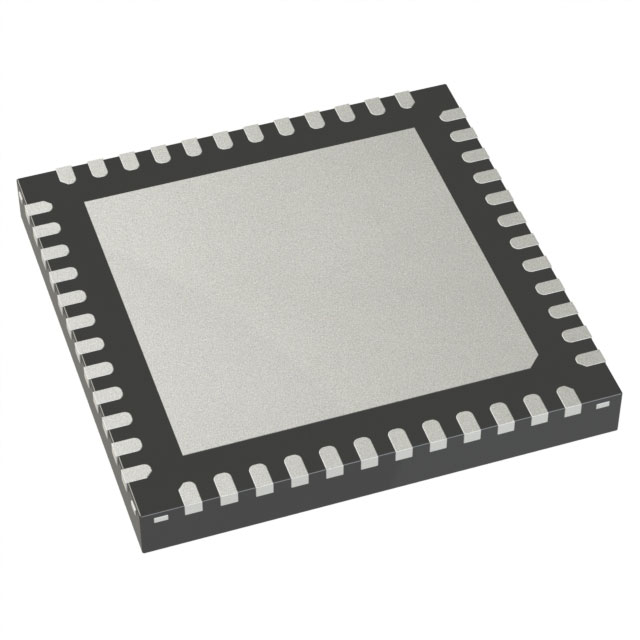

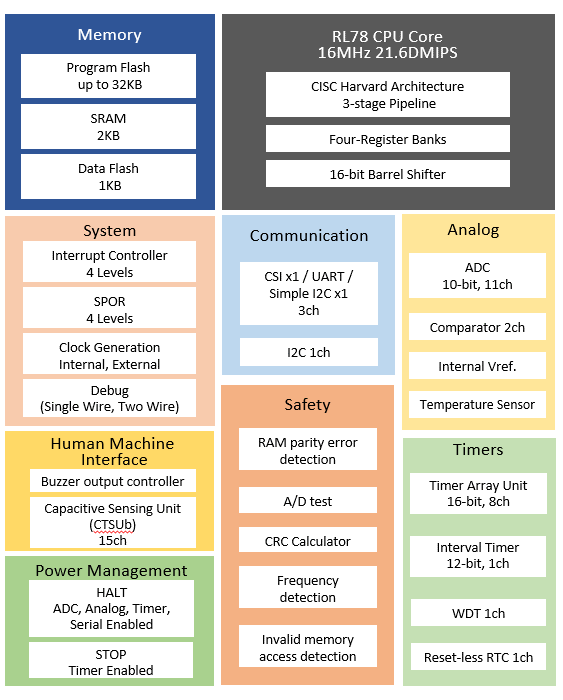

 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 1.6 V | 5.5 V | 34 | FLASH | 16-Bit | DMA LVD POR PWM WDT | 4K x 8 | 48-WFQFN Exposed Pad | Internal | 32 MHz | 48-HWQFN (7x7) | 48 KB | 10 channels | 8 bits | 10 bits | |||||||||||
 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 105 °C | -40 °C | Surface Mount | 2.4 V | 5.5 V | 35 | FLASH | 16-Bit | LVD POR PWM WDT | 4K x 8 | 44-LQFP | External Internal | 32 MHz | 44-LQFP (10x10) | 16 KB | 2x8b | 10x8 | 10b | |||||||||||
 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 1.6 V | 5.5 V | 34 | FLASH | 16-Bit | DMA LVD POR PWM WDT | 48-WFQFN Exposed Pad | Internal | 32 MHz | 48-HWQFN (7x7) | 128 KB | 10 channels | 8 bits | 10 bits | 12 K | |||||||||||
Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 105 °C | -40 °C | Surface Mount | 2.4 V | 5.5 V | 31 | FLASH | 16-Bit | DMA LVD POR PWM WDT | 4K x 8 | 44-LQFP | Internal | 32 MHz | 44-LQFP (10x10) | 64 KB | 10 channels | 8 bits | 10 bits | 5.5 K | ||||||||||
 Renesas Electronics Corporation | CSI I2C SPI UART/USART | RL78 | 105 °C | -40 °C | Surface Mount | 2K x 8 | 2.4 V | 5.5 V | 13 | FLASH | 16-Bit | Capacitive Touch POR PWM Voltage Detect WDT | 10b 7x8 | 16-WFQFN Exposed Pad | External Internal | 16 MHz | 16-HWQFN (3x3) | 32 KB | |||||||||||||
 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 1.6 V | 5.5 V | 64 | FLASH | 16-Bit | DMA LVD POR PWM WDT | A/D 17x8/10b; D/A 2x8b | 80-LQFP | Internal | 32 MHz | 80-LQFP | 512 KB | 8 K | 14 | 14 | |||||||||||
 Renesas Electronics Corporation | CSI I2C LINbus UART/USART | RL78 | 85 °C | -40 °C | Surface Mount | 2K x 8 | 1.6 V | 5.5 V | 21 I/O | FLASH | 16-Bit | DMA LVD POR PWM WDT | A/D 8x8/10b | 4K x 8 | 30-LSSOP | Internal | 32 MHz | 30-LSSOP | 32 KB | 0.24 in | 6.1 mm |
Description
AI

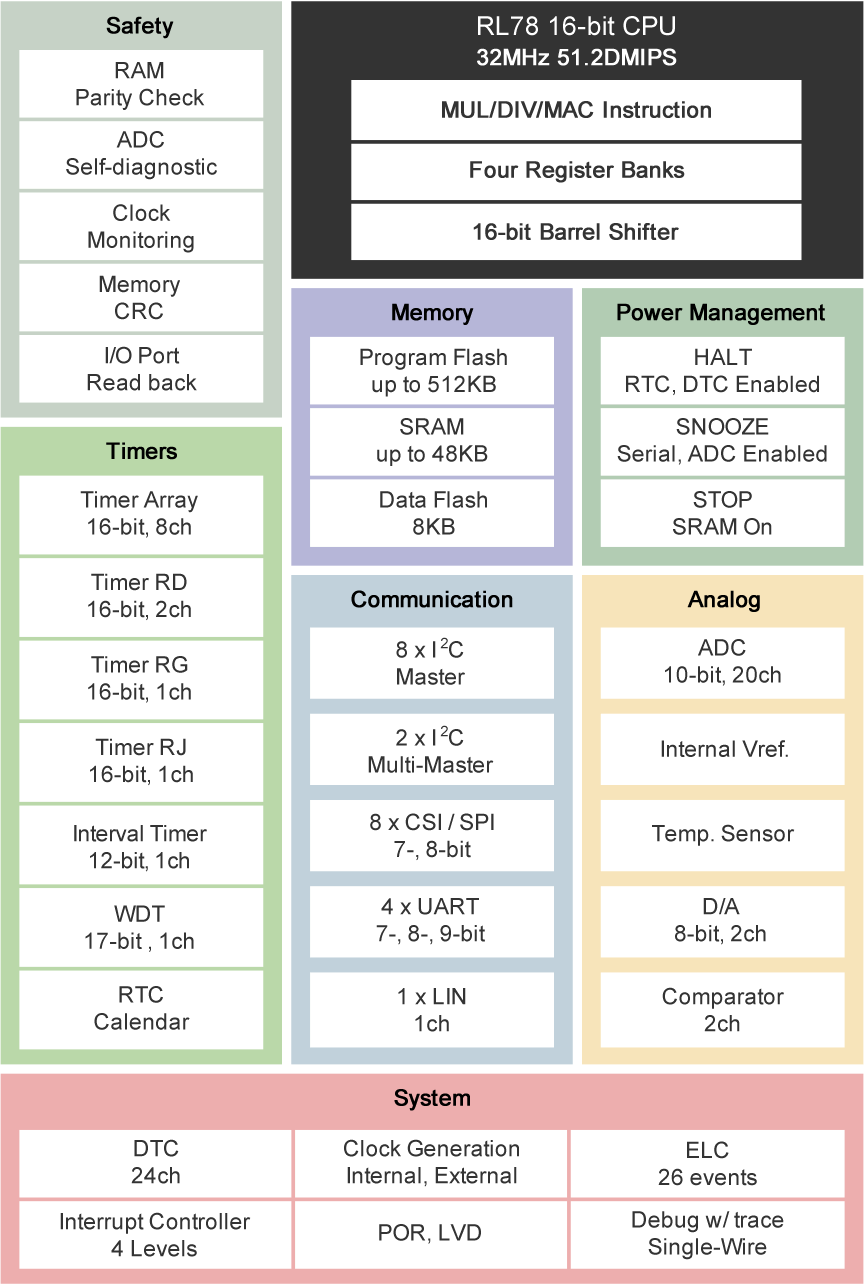

RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a broad 30 to 100-pin lineup and up to 512 KB on-chip flash memory, these microcontrollers can be used in a wide variety of applications such as motor control and consumer and industrial equipment.
