5688 Series

Manufacturer: BRADY

Catalog

5688-HPHV FIRE PROTECTION/RED/ST

Part	Label Type	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Material	Color [custom]	Color [custom]	Material - Body	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Mounting Type	Legend (Text)	Application Specifics	Legend (Symbol Only)	Shape	Length	Length	Color - Background	Color - Legend	Applications	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Features	Location	Width	Width	Arrangement	Language	Print Type	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]
BRADY 5688-HPHV	Fire Protection	101.6 mm	609.6 mm	4 "	24 in	Polyester	Red	White

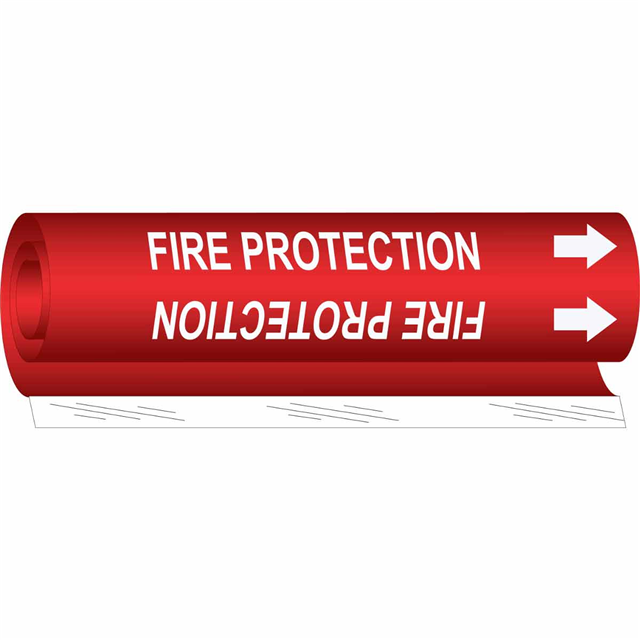

BRADY 5688-I									Plastic	60.33 mm	2.375 in	Snap On	Fire Protection	Notice	Directional Arrow	Rectangle	9 in	228.6 mm	Red	White	General	1.5 in	38.1 mm	Chemical Resistant	Outdoor	8 in	203.2 mm	Text Only	63000 A 69000 A	Pre-Printed
BRADY 5688-O									Plastic	34.93 mm	1.375 in	Snap On	Fire Protection	Directionality	Directional Arrow	Rectangle	8 in	203.2 mm	Red	White	Pipe			Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Outdoor			Symbol and Text	63000 A 69000 A	Pre-Printed	0.5 in	12.7 mm	127 mm	127 mm
BRADY 5688-II									Plastic		7.875 in	Snap On	Fire Protection	Directionality	Directional Arrow	Rectangle			Red	White	Pipe			Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Outdoor	12 in	304.8 mm	Symbol and Text	63000 A 69000 A	Pre-Printed					200.03 mm	660.4 mm	26 in	63.5 mm	2.5 in
