MAX996 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

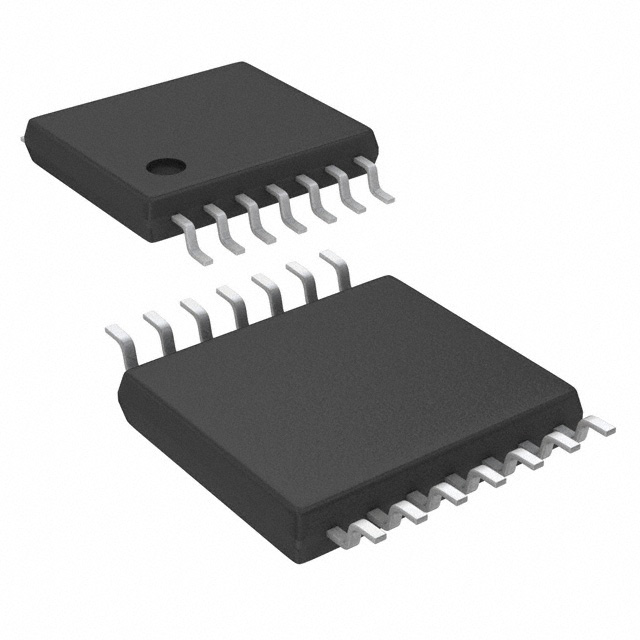

IC COMPARATOR 4 GEN PUR 14TSSOP

Part	Package / Case [custom]	Package / Case [custom]	Package / Case	Propagation Delay (Max) [Max]	CMRR, PSRR (Typ)	CMRR, PSRR (Typ)	Mounting Type	Output Type	Hysteresis	Voltage - Input Offset (Max)	Number of Elements	Current - Quiescent (Max) [Max]	Current - Input Bias (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Package / Case [x]	Package / Case [y]
Analog Devices Inc./Maxim Integrated MAX996EUD	0.173 "	4.4 mm	14-TSSOP	210 ns	80 dB	80 dB	Surface Mount	CMOS Open-Drain Rail-to-Rail TTL	2.5 mV	5 mV	4	96 µA	1 pA	85 °C	-40 °C	14-TSSOP	General Purpose	-1.25 V 2.5 V	2.75 V 5.5 V
Analog Devices Inc./Maxim Integrated MAX996ESD-T			14-SOIC	210 ns	80 dB	80 dB	Surface Mount	CMOS Open-Drain Rail-to-Rail TTL	2.5 mV	5 mV	4	96 µA	1 pA	85 °C	-40 °C		General Purpose	-1.25 V 2.5 V	2.75 V 5.5 V	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated MAX996ESD+TG077
Analog Devices Inc./Maxim Integrated MAX996ESD+T			14-SOIC	210 ns	80 dB	80 dB	Surface Mount	CMOS Open-Drain Rail-to-Rail TTL	2.5 mV	5 mV	4	96 µA	1 pA	85 °C	-40 °C		General Purpose	-1.25 V 2.5 V	2.75 V 5.5 V	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated MAX996EUD-T	0.173 "	4.4 mm	14-TSSOP	210 ns	80 dB	80 dB	Surface Mount	CMOS Open-Drain Rail-to-Rail TTL	2.5 mV	5 mV	4	96 µA	1 pA	85 °C	-40 °C	14-TSSOP	General Purpose	-1.25 V 2.5 V	2.75 V 5.5 V
Analog Devices Inc./Maxim Integrated MAX996EUD+T	0.173 "	4.4 mm	14-TSSOP	210 ns	80 dB	80 dB	Surface Mount	CMOS Open-Drain Rail-to-Rail TTL	2.5 mV	5 mV	4	96 µA	1 pA	85 °C	-40 °C	14-TSSOP	General Purpose	-1.25 V 2.5 V	2.75 V 5.5 V
