1744428 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Mounting Type	Insulation Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Style	Shrouding	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Applications	Voltage Rating	Insulation Height	Insulation Height	Number of Positions

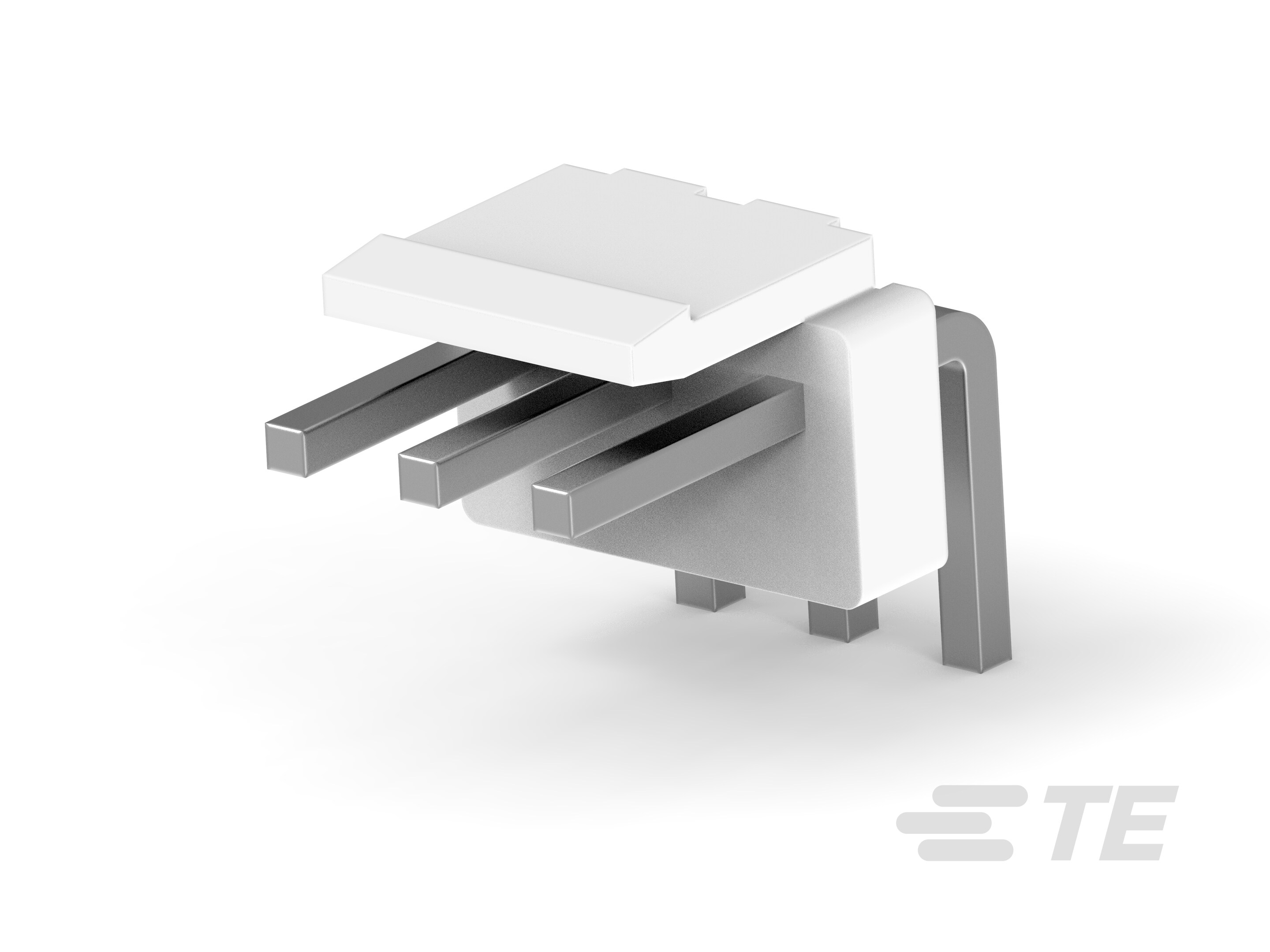

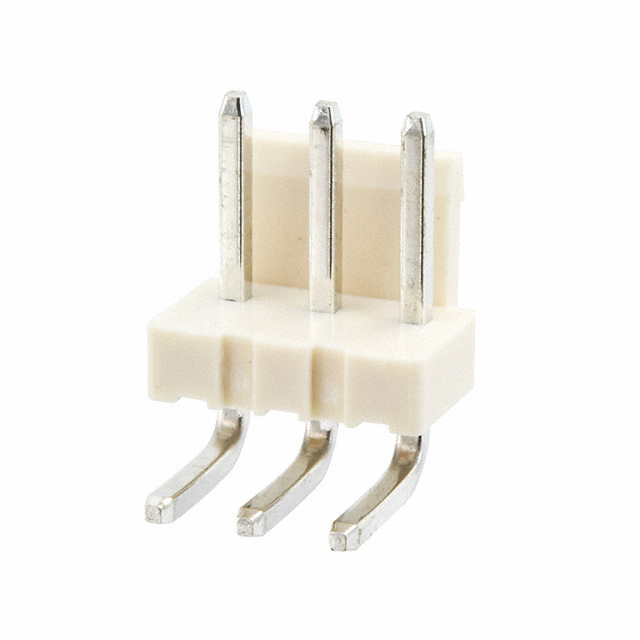

TE Connectivity Raychem Cable Protection 1744428-3	0.156 in	3.96 mm	Male Pin	Solder	Through Hole Right Angle	Nylon Polyamide (PA)	Glow Wire Compliant	-25 °C	105 ░C	8.59 mm	0.338 "	Brass	7.5 A	2.03 µm	80 µin	Square	Board to Cable/Wire	Shrouded - 1 Wall	UL94 V-0	1	2.03 µm	80 µin	Header	Locking Ramp	All	3.6 mm	0.142 in	Tin	General Purpose Industrial Lighting	250 VAC	8.61 mm	0.339 "

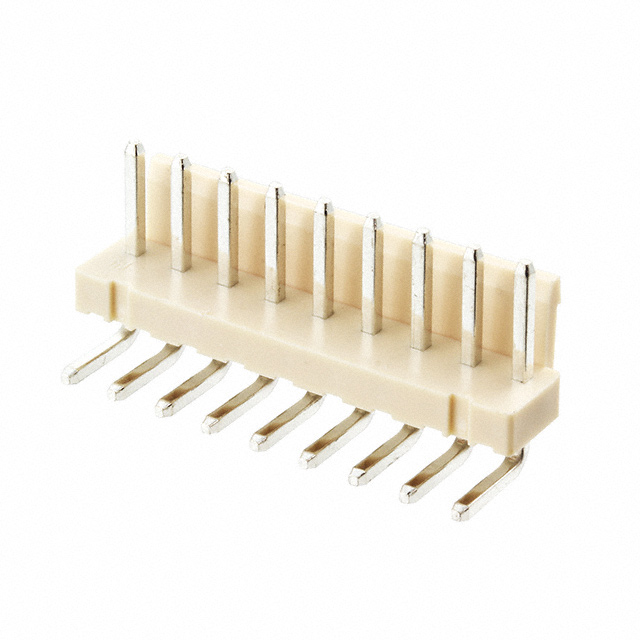

TE Connectivity Raychem Cable Protection 1744428-9	0.156 in	3.96 mm	Male Pin	Solder	Through Hole Right Angle	Nylon Polyamide (PA)	Glow Wire Compliant	-25 °C	105 ░C	8.59 mm	0.338 "	Brass	7.5 A	2.03 µm	80 µin	Square	Board to Cable/Wire	Shrouded - 1 Wall	UL94 V-0	1	2.03 µm	80 µin	Header	Locking Ramp	All	3.6 mm	0.142 in	Tin	General Purpose Industrial Lighting	250 VAC	8.61 mm	0.339 "	9

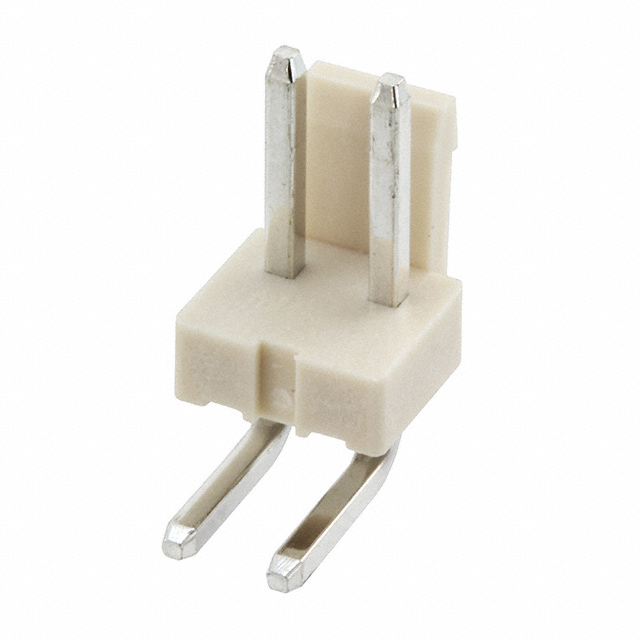

TE Connectivity Raychem Cable Protection 1744428-2	0.156 in	3.96 mm	Male Pin	Solder	Through Hole Right Angle	Nylon Polyamide (PA)	Glow Wire Compliant	-25 °C	105 ░C	8.59 mm	0.338 "	Brass	7.5 A	2.03 µm	80 µin	Square	Board to Cable/Wire	Shrouded - 1 Wall	UL94 V-0	1	2.03 µm	80 µin	Header	Locking Ramp	All	3.6 mm	0.142 in	Tin	General Purpose Industrial Lighting	250 VAC	8.61 mm	0.339 "	2

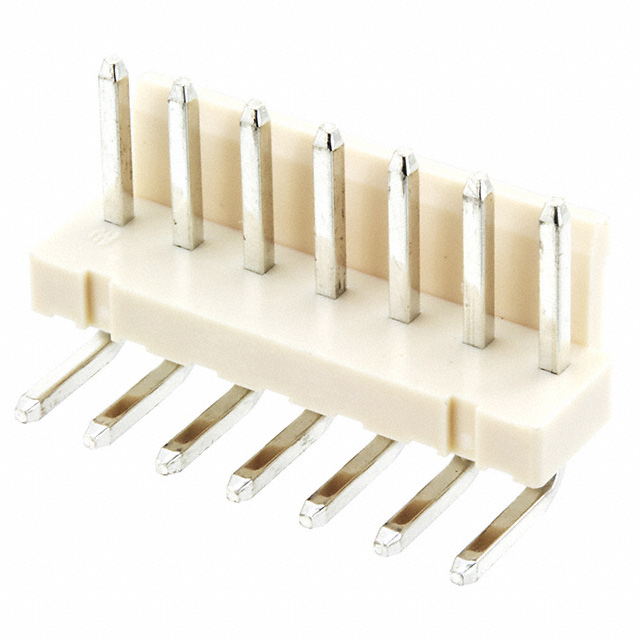

TE Connectivity Raychem Cable Protection 1744428-7	0.156 in	3.96 mm	Male Pin	Solder	Through Hole Right Angle	Nylon Polyamide (PA)	Glow Wire Compliant	-25 °C	105 ░C	8.59 mm	0.338 "	Brass	7.5 A	2.03 µm	80 µin	Square	Board to Cable/Wire	Shrouded - 1 Wall	UL94 V-0	1	2.03 µm	80 µin	Header	Locking Ramp	All	3.6 mm	0.142 in	Tin	General Purpose Industrial Lighting	250 VAC	8.61 mm	0.339 "	7
