PEH534Y Series
Manufacturer: KEMET
Beta
⌘K

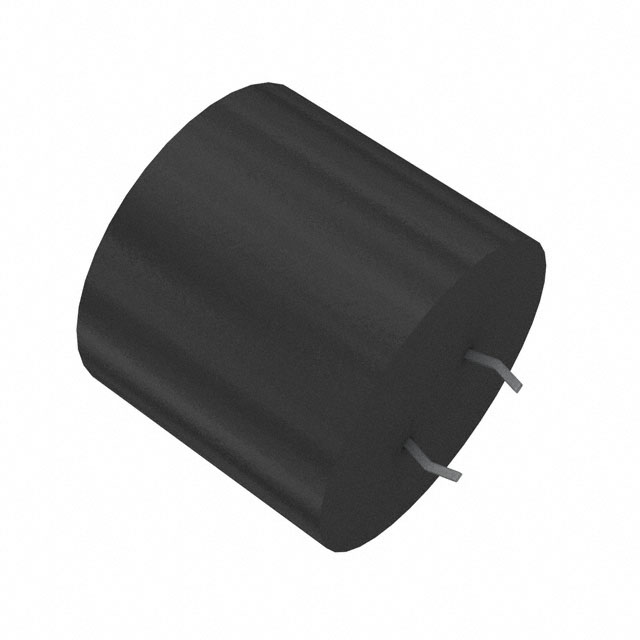

CAP ALUMINUM LYTIC 470UF 450V 20% (35 X 50MM) SNAP-IN 10MM 0.18 OHM 1.9A 3000H 105°C BAG
| Part | Ripple Current @ Low Frequency | Polarization | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Lead Spacing | Lead Spacing | ESR (Equivalent Series Resistance) | Capacitance | Package / Case | Lifetime @ Temp. | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.9 A | Polar | 450 V | 1.378 " | 35 mm | 1.969 in | 50 mm | 20 % | 0.394 in | 10 mm | 180 mOhm | 470 µF | Radial Can - Snap-In | 2000 Hrs | General Purpose | Through Hole | -40 C | 105 ░C |
