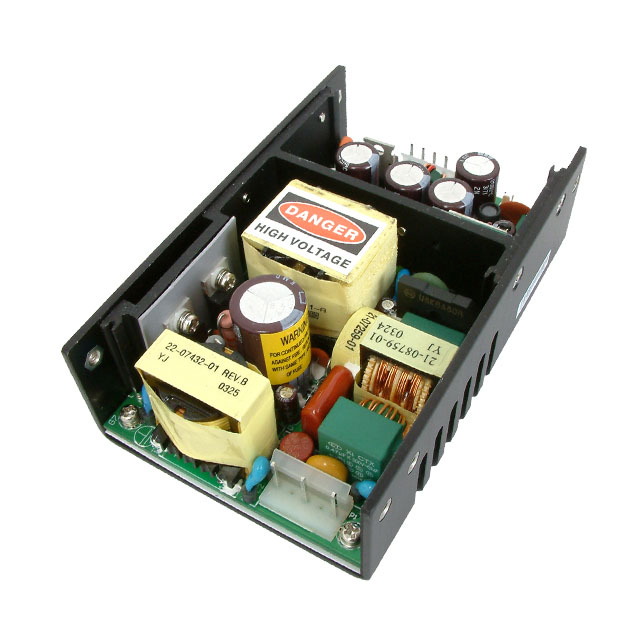

VSUU-150 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 150W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output 1 | Power (Watts) | Mounting Type | Features | Approval Agency | Efficiency | Voltage - Output 1 | Standard Number | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Applications | Type | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 70 °C | 0 °C | 1 | 3.13 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 48 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
 CUI Inc. | 70 °C | 0 °C | 1 | 6.25 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 24 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
CUI Inc. | 70 °C | 0 °C | 1 | 8.33 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 18 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
 CUI Inc. | 70 °C | 0 °C | 1 | 16 A | 144 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 9 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
CUI Inc. | 70 °C | 0 °C | 1 | 10 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 15 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
CUI Inc. | 70 °C | 0 °C | 1 | 5 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 30 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | |
CUI Inc. | 70 °C | 0 °C | 1 | 4.17 A | 150 W | Chassis Mount | PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 80 % | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 1.62 " | 127 mm | 81.6 mm | 5 " | 41.2 mm | 3.21 in | ITE (Commercial) | Open Frame | 4.242 kV | 264 VAC | 90 VAC | 36 V |
