1586039 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 20POS 4.2MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Material Flammability Rating	Shrouding	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Height [z]	Insulation Height [z]	Connector Type	Insulation Material	Termination	Features	Contact Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Style	Contact Finish - Post	Insulation Color	Mounting Type	Contact Material	Current Rating (Amps)	Voltage Rating

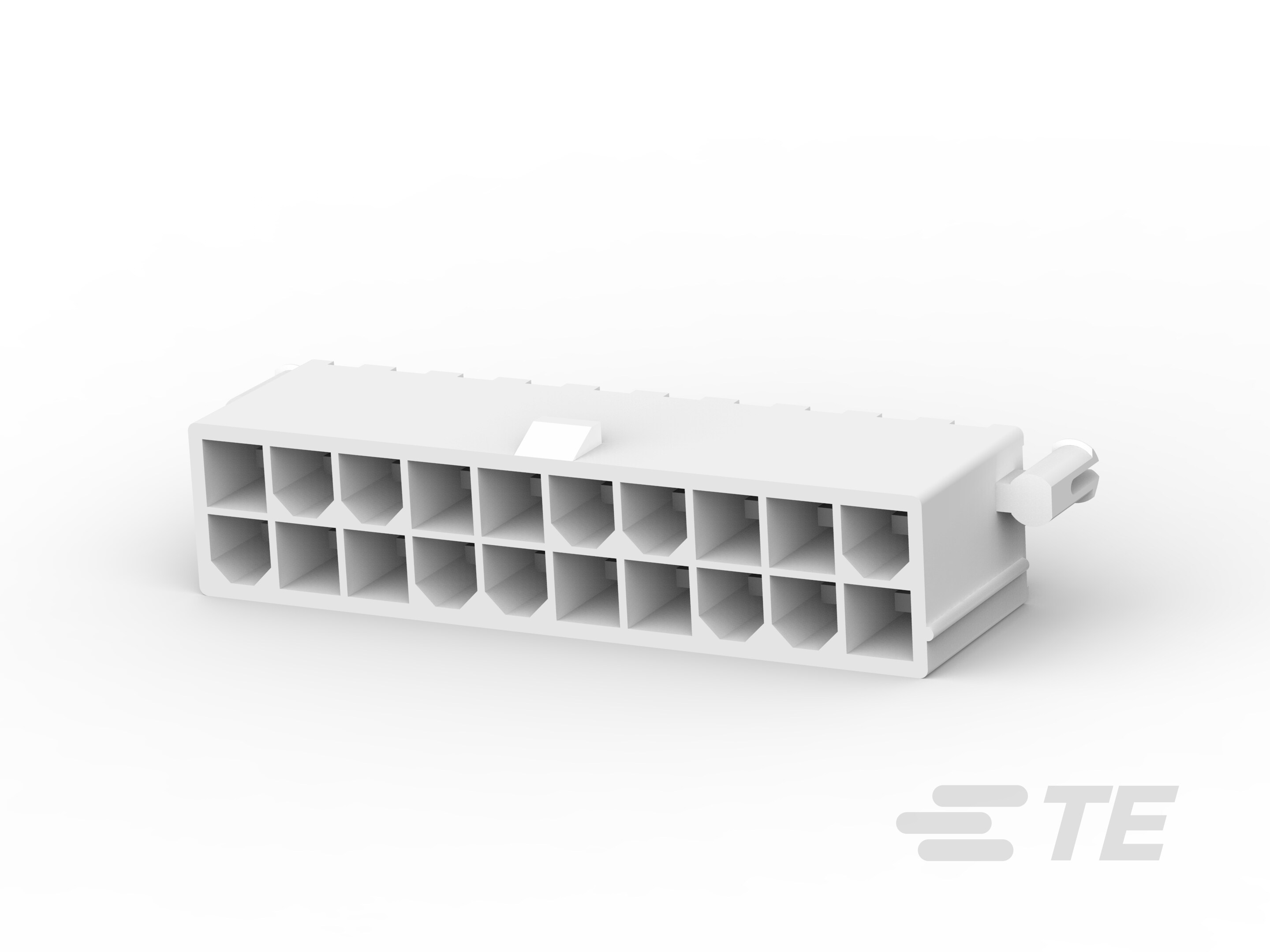

TE Connectivity AMP Connectors 2-1586039-0	General Purpose Industrial Lighting	2.03 µm	80 µin	Locking Ramp	UL94 V-2	Shrouded - 4 Wall	20	2.03 µm	80 µin	2	0.138 in	3.5 mm	-40 C	105 ░C	Square	12.8 mm	0.504 "	Header	Nylon 6/6 Polyamide (PA66)	Solder	Board Lock	Male Pin	0.165 in	4.2 mm	0.165 in	4.2 mm	All	Board to Cable/Wire	Tin	Natural	Through Hole	Brass Alloy	9 A	600 VAC
TE Connectivity AMP Connectors 1586039-2	General Purpose Industrial Lighting	2.03 µm	80 µin	Locking Ramp	UL94 V-2	Shrouded - 4 Wall	2	2.03 µm	80 µin	2	0.138 in	3.5 mm	-40 C	105 ░C	Square	12.8 mm	0.504 "	Header	Nylon 6/6 Polyamide (PA66)	Solder	Board Lock	Male Pin			0.165 in	4.2 mm	All	Board to Cable/Wire	Tin	Natural	Through Hole	Brass Alloy	9 A	600 VAC

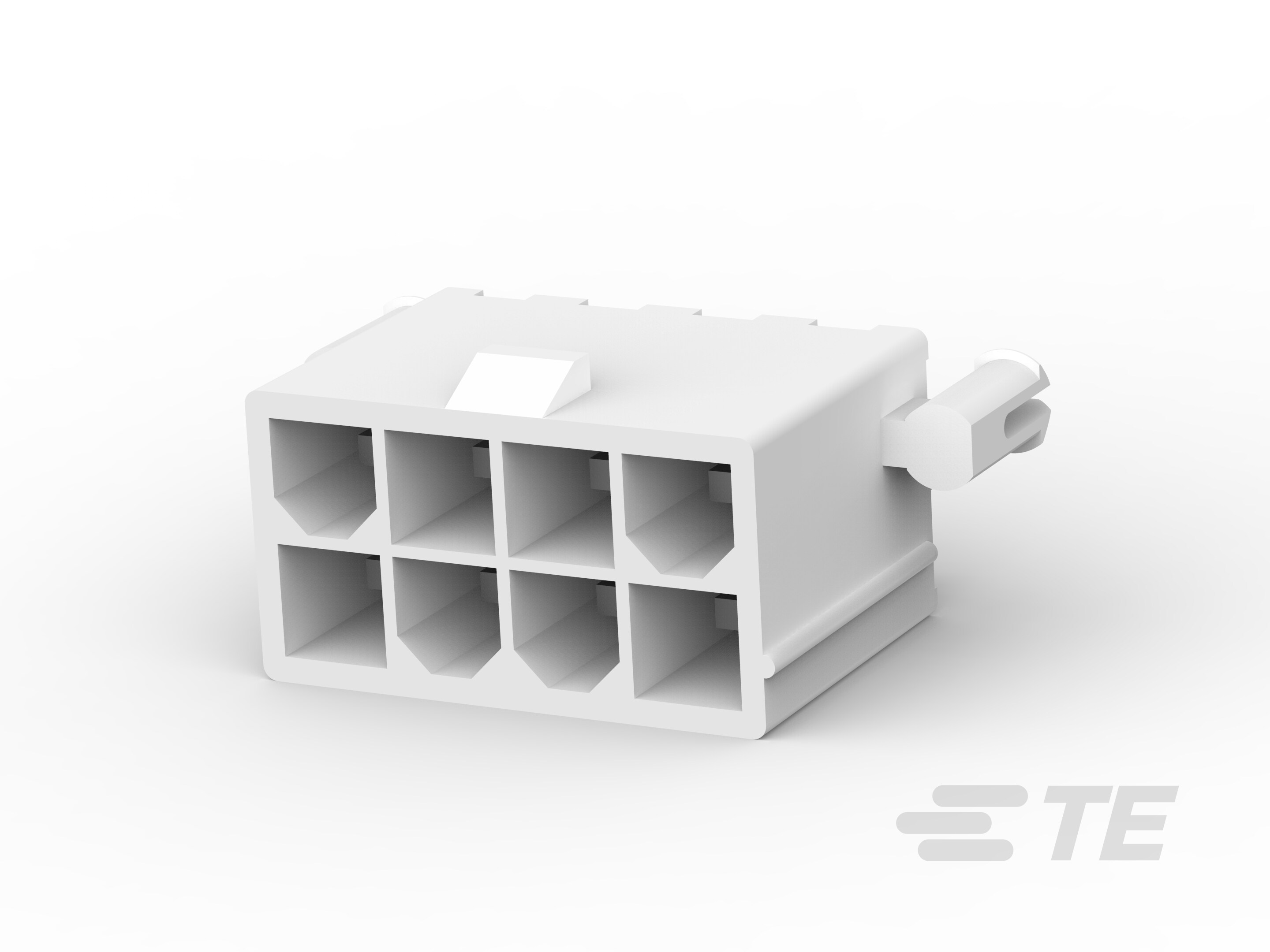

TE Connectivity AMP Connectors 1586039-8	General Purpose Industrial Lighting	2.03 µm	80 µin	Locking Ramp	UL94 V-2	Shrouded - 4 Wall	8	2.03 µm	80 µin	2	0.138 in	3.5 mm	-40 C	105 ░C	Square	12.8 mm	0.504 "	Header	Nylon 6/6 Polyamide (PA66)	Solder	Board Lock	Male Pin	0.165 in	4.2 mm	0.165 in	4.2 mm	All	Board to Cable/Wire	Tin	Natural	Through Hole	Brass Alloy	9 A	600 VAC
TE Connectivity AMP Connectors 2-1586039-2	General Purpose Industrial Lighting	2.03 µm	80 µin	Locking Ramp	UL94 V-2	Shrouded - 4 Wall	22	2.03 µm	80 µin	2	0.138 in	3.5 mm	-40 C	105 ░C	Square	12.8 mm	0.504 "	Header	Nylon 6/6 Polyamide (PA66)	Solder	Board Lock	Male Pin	0.165 in	4.2 mm	0.165 in	4.2 mm	All	Board to Cable/Wire	Tin	Natural	Through Hole	Brass Alloy	9 A	600 VAC
TE Connectivity AMP Connectors 1586039-4	General Purpose Industrial Lighting	2.03 µm	80 µin	Locking Ramp	UL94 V-2	Shrouded - 4 Wall	4	2.03 µm	80 µin	2	0.138 in	3.5 mm	-40 C	105 ░C	Square	12.8 mm	0.504 "	Header	Nylon 6/6 Polyamide (PA66)	Solder	Board Lock	Male Pin	0.165 in	4.2 mm	0.165 in	4.2 mm	All	Board to Cable/Wire	Tin	Natural	Through Hole	Brass Alloy	9 A	600 VAC
