GBC02D Series

Catalog

CONN HEADER SMD 4POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish - Post	Shrouding	Number of Positions	Connector Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Style	Contact Finish - Mating	Current Rating (Amps)

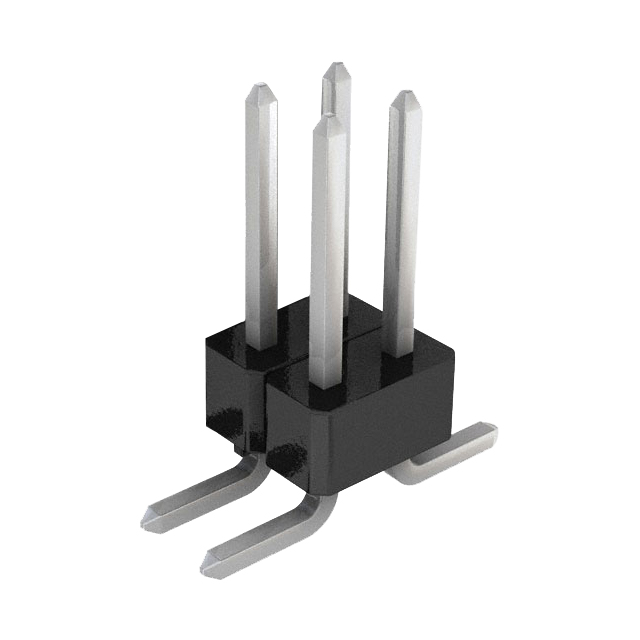

Sullins Connector Solutions GBC02DABN-M30	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	Male Pin	150 °C	-65 ░C	Black	All	UL94 V-0	Square	0.1 "	2.54 mm	2	Solder	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	Tin	Unshrouded	4	Header Breakaway	Surface Mount	0.1 in	2.54 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Board to Board Cable	Gold	3 A
Sullins Connector Solutions GBC02DFBN-M30	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	Male Pin	150 °C	-65 ░C	Black	All	UL94 V-0	Square	0.1 "	2.54 mm	2	Solder	0.318 in	8.08 mm	Nylon 9T Polyamide (PA9T)	Tin	Unshrouded	4	Header Breakaway	Surface Mount	0.1 in	2.54 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Board to Board Cable	Gold	3 A
