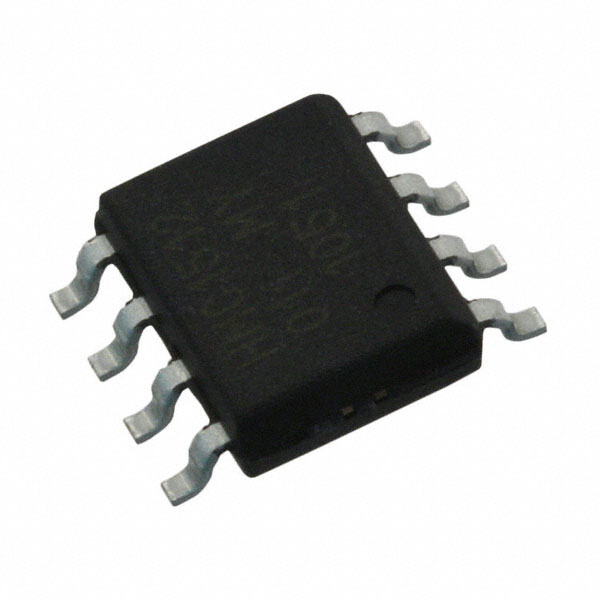

HMC1512 Series
Manufacturer: Honeywell Aerospace
Beta
⌘K
SENSOR ANGLE 180DEG 8MM SMD
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Actuator Type | Rotation Angle - Electrical, Mechanical | Termination Style | Resistance | Package / Case | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Linear Range [Max] | Linear Range [Max] | Linear Range [Min] | Linear Range [Min] | Output | Technology | For Measuring | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Aerospace | 1 V | 25 V | Surface Mount | External Magnet Not Included | 180 ° | Gull Wing | 2.8 kOhms | 0.154 in | 8-SOIC | 3.9 mm | 125 °C | -40 C | 8 mm | 0.31 " | 0 " | 0 mm | Wheatstone Bridge | Magnetoresistive | Angle Linear Rotary | 8-SOIC |
