VXO78012 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 12V 6W
| Part | Power (Watts) | Approval Agency | Type | Current - Output (Max) [Max] | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Efficiency | Package / Case | Voltage - Input (Min) [Min] | Applications | Voltage - Input (Min) | Current - Output (Max) | Voltage - Input (Max) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

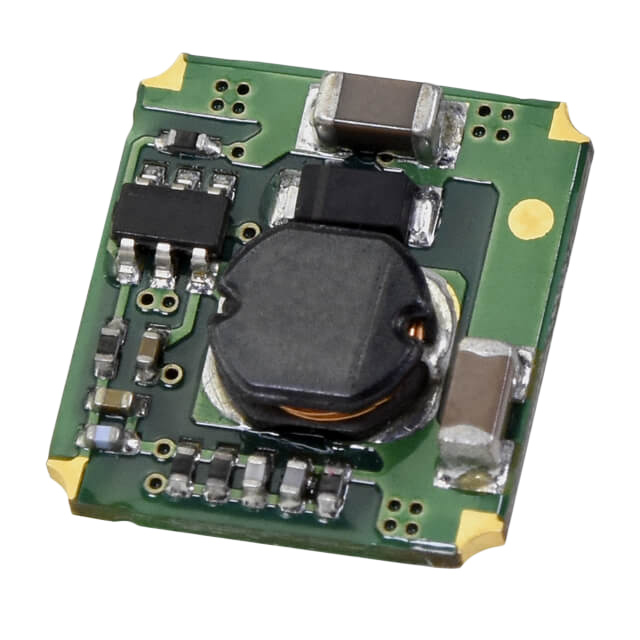

 CUI Inc. | 6 W | EN | Non-Isolated PoL Module | 500 mA | 55024 55032 | -40 °C | 85 °C | 36 V | 12 V | Surface Mount | 0.53 " | 13.5 mm | 0.14 in | 12.5 mm | 3.5 mm | 0.49 " | 1 | 94 % | 4-SMD Module | 15 V | ITE (Commercial) | ||||

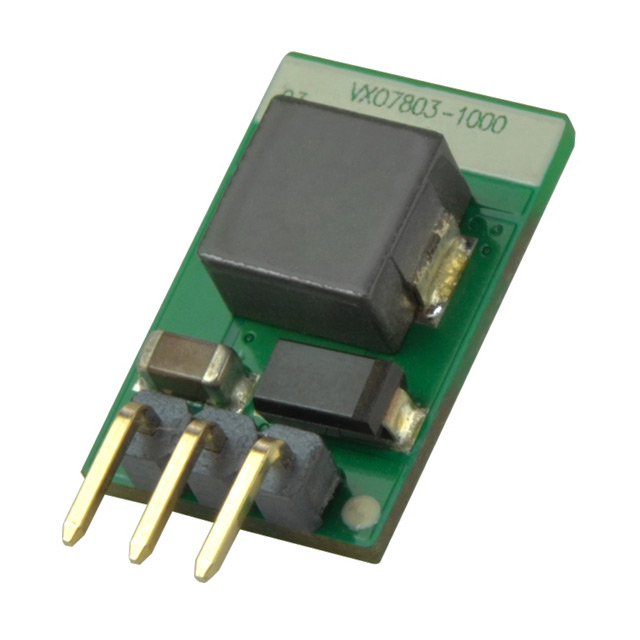

 CUI Inc. | 12 W | CB Scheme EN IEC UL | Linear Regulator Replacement | 55024 55032 Class A 60950-1 | -40 °C | 85 °C | -12 V 12 V | Through Hole | 0.45 " | 11.5 mm | 0.69 in | 7.5 mm | 17.5 mm | 0.3 " | 1 | 96 % | 3-SIP Module | ITE (Commercial) | 8 V 16 V | 1 A 300 mA | 20 V 36 V | SCP | |||

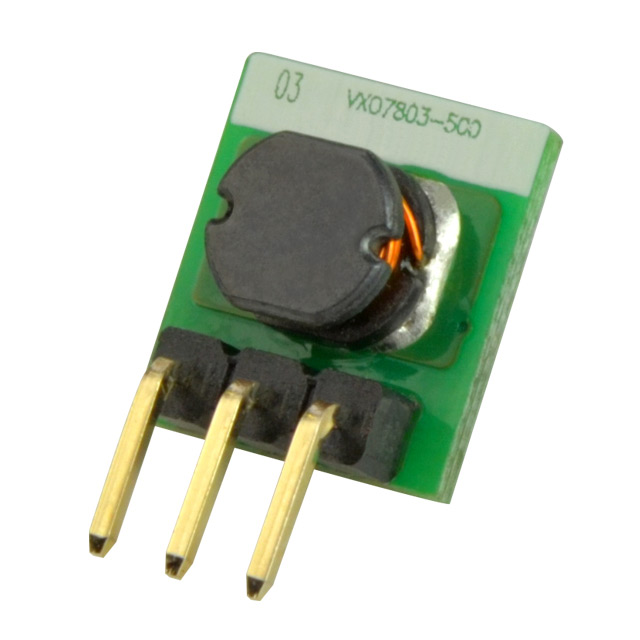

 CUI Inc. | 6 W | CB Scheme EN IEC UL | Linear Regulator Replacement | 55024 55032 Class A 60950-1 | -40 °C | 85 °C | -12 V 12 V | Through Hole | 0.39 " | 10 mm | 0.43 in | 7.2 mm | 11 mm | 0.28 in | 1 | 94 % | 3-SIP Module | ITE (Commercial) | 8 V 15 V | 150 mA 500 mA | 24 V 36 V | SCP |
