APGA1602 Series

Catalog

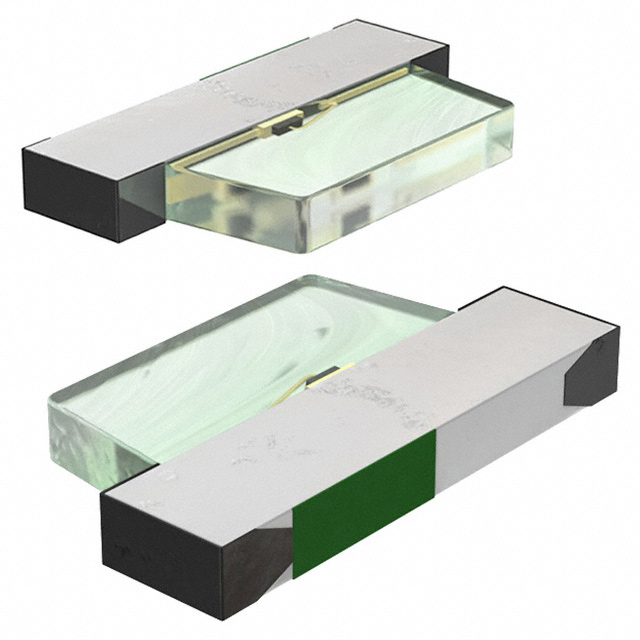

SINGLE COLOR LEDS 1.6X0.2MM BLUE LED RIGHT ANGLE SMD CHIP

Part	Lens Transparency	Supplier Device Package	Wavelength - Peak	Package / Case	Lens Size [x]	Lens Size [y]	Millicandela Rating	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Color	Configuration	Mounting Type	Wavelength - Dominant	Lens Color	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case
Kingbright APGA1602QBC/KA-5MAV	Clear	SMD	460 nm	2-SMD No Lead	1.6 mm	0.9 mm	20 mcd	Rectangle with Flat Top	1.6 mm	0.9 mm	130 ° 150 °	Blue	Standard	Right Angle Surface Mount	463 nm	Colorless	0.3 mm	2.8 V	5 mA
Kingbright APGA1602SYC/KA	Clear	Chip LED	591 nm	0603	1.6 mm	0.9 mm	75 mcd	Rectangle with Flat Top	1.6 mm	0.9 mm	120 ° 160 °	Yellow	Standard	Right Angle Surface Mount	589 nm	Colorless	0.3 mm	2.05 V	20 mA	1608 Metric
Kingbright APGA1602SEC/E/KA	Clear	Chip LED	632 nm	0603	1.6 mm	0.9 mm	120 mcd	Rectangle with Flat Top	1.6 mm	0.9 mm	120 ° 150 °	Red	Standard	Right Angle Surface Mount	624 nm	Colorless	0.3 mm	2.05 V	20 mA	1608 Metric
Kingbright APGA1602QWF/KA-5MAV	Diffused	2-SMD		2-SMD No Lead	1.2 mm	0.2 mm	60 mcd	Rectangle with Flat Top	1.6 mm	0.9 mm	150 °	Cool White	Standard	Right Angle Surface Mount		Yellow	0.3 mm	2.8 V	5 mA
Kingbright APGA1602CGC/KA	Clear	Chip LED	573 nm	0603	1.6 mm	0.9 mm	30 mcd	Rectangle with Flat Top	1.6 mm	0.9 mm	145 ° 160 °	Green	Standard	Right Angle Surface Mount	571 nm	Colorless	0.3 mm	2.05 V	20 mA	1608 Metric
