1734827 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER SMD R/A 6POS 2MM

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Type	Insulation Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material Flammability Rating	Mounting Type	Insulation Height	Insulation Height	Connector Type	Contact Material	Number of Positions Loaded	Termination	Contact Shape	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Number of Positions	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Color
TE Connectivity Raychem Cable Protection 1734827-6	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC	6	Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
TE Connectivity Raychem Cable Protection 1734827-9	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC	9	Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
TE Connectivity Raychem Cable Protection 1-1734827-0	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC	10	Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
TE Connectivity Raychem Cable Protection 1734827-3	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC		Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
TE Connectivity Raychem Cable Protection 1734827-4	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC	4	Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural

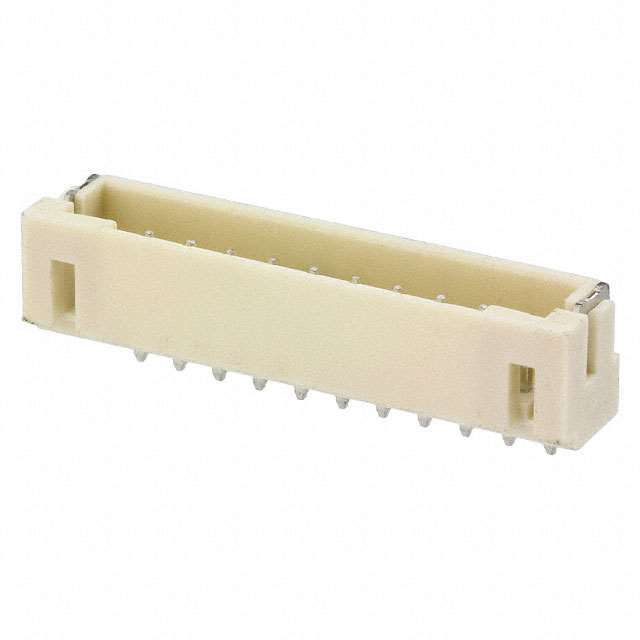

TE Connectivity Raychem Cable Protection 1-1734827-1	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC	11	Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
TE Connectivity Raychem Cable Protection 1734827-5	0.079 in	2 mm	Tin	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Board to Cable/Wire	-25 °C	85 °C	Solder Retention	UL94 V-0	Surface Mount Right Angle	5.6 mm	0.22 in	Header	Brass	All	Solder	Square	1	2.54 µm	100 µin	125 VDC		Automotive General Purpose Industrial Medical	2.54 çm	100 çin	Shrouded - 4 Wall	Natural
