1735482 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

0.8FH,R17H.5,180,30/SN,TR,SC

Part	Contact Finish	Mated Stacking Heights	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows [custom]	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch	Pitch

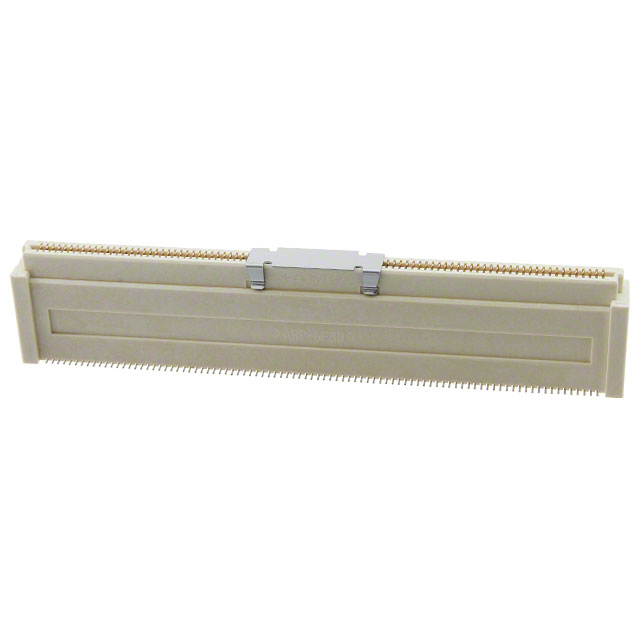

TE Connectivity AMP Connectors 2-1735482-9	Gold	17 mm	Surface Mount	30 Áin	0.76 Ám	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	180	0.8 mm	0.031 in
TE Connectivity AMP Connectors 1735482-8	Gold	17 mm	Surface Mount	8 µin	0.203 çm	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	160	0.8 mm	0.031 in
TE Connectivity AMP Connectors 2-1735482-1	Gold	17 mm	Surface Mount	30 Áin	0.76 Ám	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	40	0.8 mm	0.031 in

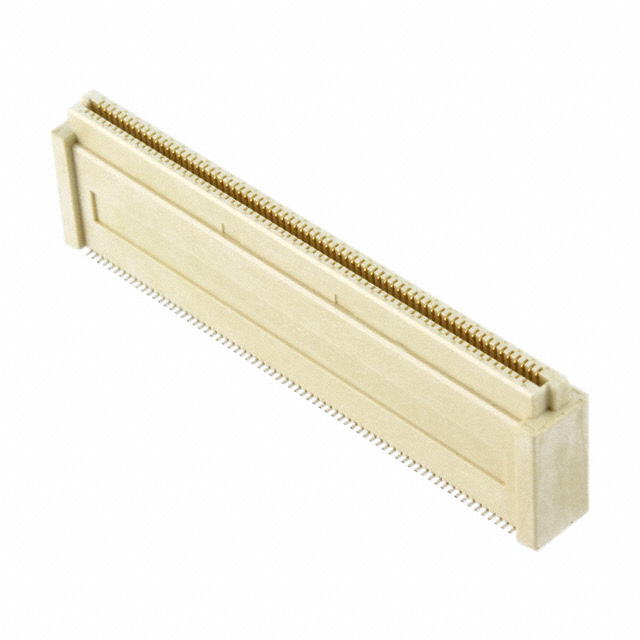

TE Connectivity AMP Connectors 1735482-6	Gold	17 mm	Surface Mount	8 µin	0.203 çm	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	140	0.8 mm	0.031 in

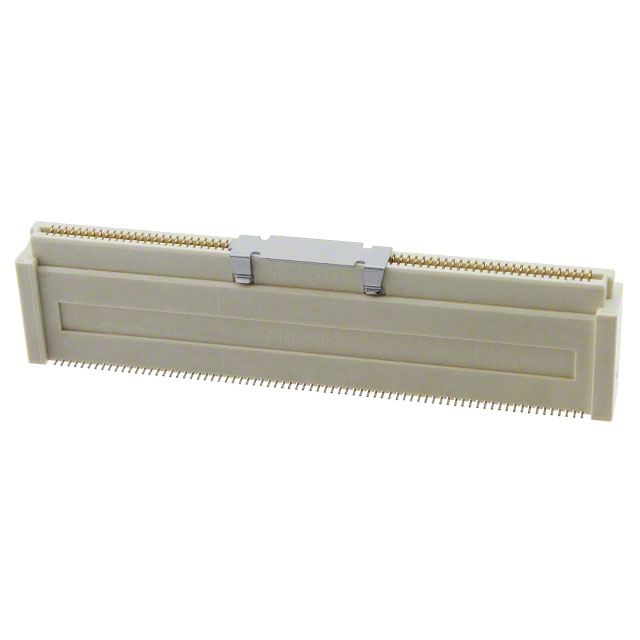

TE Connectivity AMP Connectors 1735482-7	Gold	17 mm	Surface Mount	8 µin	0.203 çm	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	150	0.8 mm	0.031 in

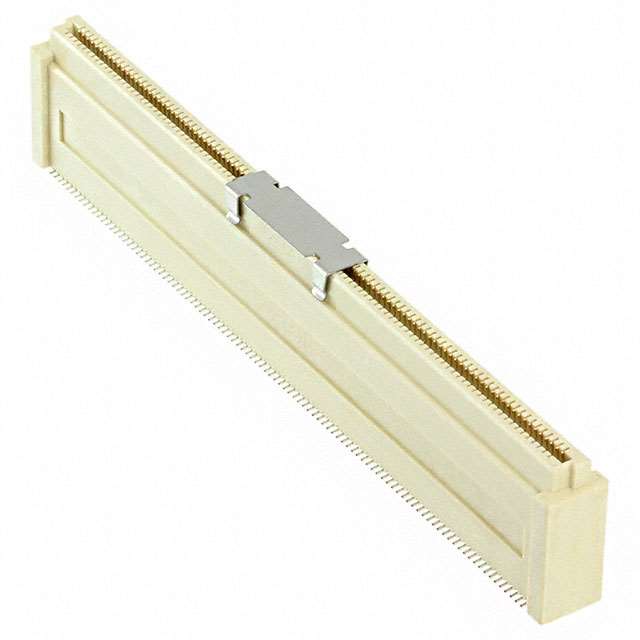

TE Connectivity AMP Connectors 1-1735482-0	Gold	17 mm	Surface Mount	8 µin	0.203 çm	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	200	0.8 mm	0.031 in
TE Connectivity AMP Connectors 2-1735482-8	Gold	17 mm	Surface Mount	30 Áin	0.76 Ám	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	160	0.8 mm	0.031 in
TE Connectivity AMP Connectors 2-1735482-6	Gold	17 mm	Surface Mount	30 Áin	0.76 Ám	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	140	0.8 mm	0.031 in
TE Connectivity AMP Connectors 1735482-1	Gold	17 mm	Surface Mount	8 µin	0.203 çm	Board Guide	2	Receptacle Outer Shroud Contacts	15.75 mm	0.62 in	40	0.8 mm	0.031 in
