TDA893 Series

Catalog

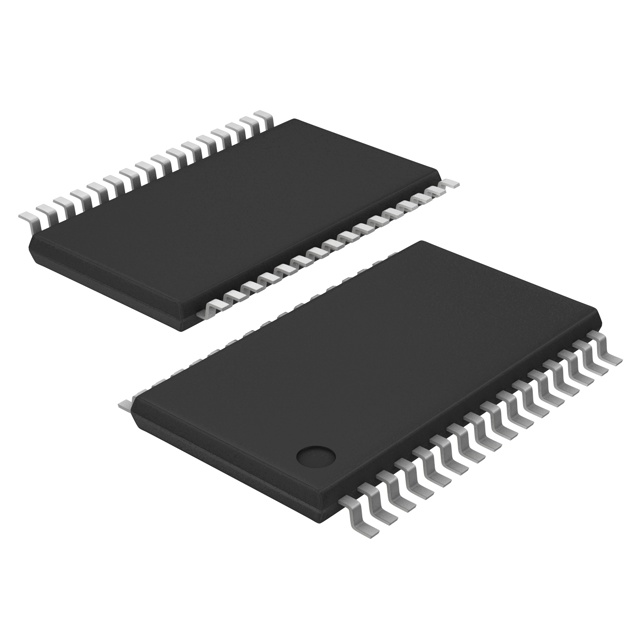

IC AMP D MONO/STER 55W 32HTSSOP

Part	Mounting Type	Package Name	Type	Output Type	Features	Package Width	Package Features	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Maximum Output Power (per Channel)	Channels	Load Impedance	Voltage - Supply (Minimum)	Voltage - Supply Tolerance (Maximum)	Voltage - Supply Tolerance (Minimum)	Voltage - Supply (Maximum)
NXP USA Inc. TDA8932BTW/N2,112	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	26.5 W 55 W	1 2	4 Ohm 8 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8932BTW/N2,518	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	26.5 W 55 W	1 2	4 Ohm 8 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8933BTW/N2,112	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	10.3 W 20.6 W	1 2	8 Ohm 16 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8931T/N1,112	Surface Mount	20-SO 20-SOIC	Class D	1-Channel (Mono)	Depop Short-Circuit and Thermal Protection	7.5 mm		0.295 in	85 °C	-40 °C	22 W	1	4 Ohm	12 VDC	17.5 V	-6 V	35 V
NXP USA Inc. TDA8932BTW/N2,118	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	26.5 W 55 W	1 2	4 Ohm 8 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8932T/N1,112	Surface Mount	32-SO 32-SOIC	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	7.5 mm		0.295 in	85 °C	-40 °C	26.5 W 55 W	1 2	4 Ohm 8 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8931T/N1,118	Surface Mount	20-SO 20-SOIC	Class D	1-Channel (Mono)	Depop Short-Circuit and Thermal Protection	7.5 mm		0.295 in	85 °C	-40 °C	22 W	1	4 Ohm	12 VDC	17.5 V	-6 V	35 V
NXP USA Inc. TDA8933BTW/N2,512	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	10.3 W 20.6 W	1 2	8 Ohm 16 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8933BTW/N2,518	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	10.3 W 20.6 W	1 2	8 Ohm 16 Ohm	10 VDC	18 V	-5 V	36 VDC
NXP USA Inc. TDA8933BTW/N2,118	Surface Mount	32-HTSSOP 32-TSSOP	Class D	1-Channel (Mono) or 2-Channel (Stereo)	Depop Differential Inputs Mute Short-Circuit and Thermal Protection	6.1 mm	Exposed Pad	0.24 in	85 °C	-40 °C	10.3 W 20.6 W	1 2	8 Ohm 16 Ohm	10 VDC	18 V	-5 V	36 VDC
