NCP45750 Series

Load Switch, Integrated, ecoSWITCH™ 5.9 mΩ, 24V, 10 A, Fault Protection

Catalog

Load Switch, Integrated, ecoSWITCH™ 5.9 mΩ, 24V, 10 A, Fault Protection

Part	Ratio - Input:Output [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fault Protection	Switch Type	Supplier Device Package	Number of Outputs	Rds On (Typ)	Output Configuration	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Input Type	Current - Output (Max) [Max]	Output Type

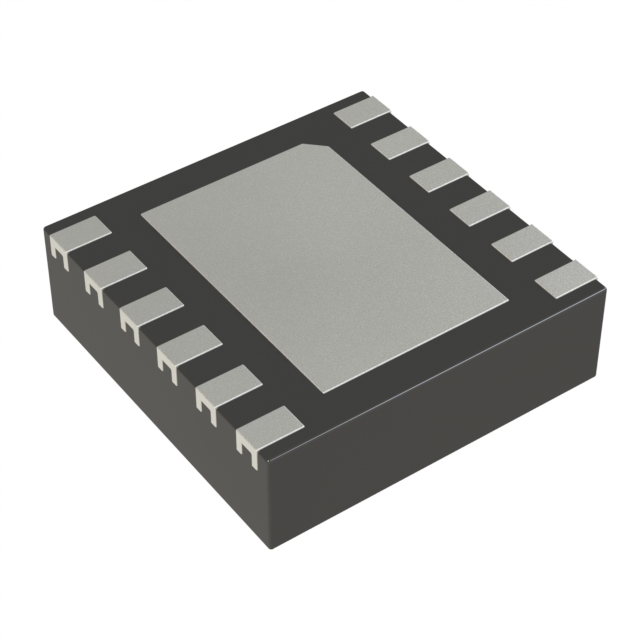

ON Semiconductor NCP45750IMN24TWG	1:1	Slew Rate Controlled	85 °C	-40 °C	Surface Mount	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO	General Purpose	12-DFN (3x3)	1	5.9 mOhm	High Side	5.5 V	3 V	24 V	3 V	12-VFDFN Exposed Pad	Non-Inverting	10 A	N-Channel

Catalog

Load Switch, Integrated, ecoSWITCH™ 5.9 mΩ, 24V, 10 A, Fault Protection

Key Features

• Advanced Controller with Charge Pump

• Soft-Start via Slew Rate Control

• Ultra-Low On-Resistance

• Input Voltage Range 2 V to 24 V (30V Tolerant)

• Fault Protection: Over Temperature

• No External Components Required

• Fault Protection: Under Voltage Lockout

• Fault Protection: Short-Circuit Protection

• Low Standby Current

• Quick Output Discharge Function

• Enable Pins with CMOS Input Levels

• Power Good Signaling

• Fault Protection: Over Current Protection

• Pb-Free Device

Description

The ecoSWITCH™ NCP45750 series of load management devices provide a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. In addition to integrated control functionality with ultra low on-resistance these devices offer additional system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.
