LD30W Series

Catalog

CV 12V@625~2500MA, NON-DIMMING

Part	Mounting Type	Weight	Weight	Topology	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Approval Agency	Current - Output (Max) [Max]	Features	Voltage - Isolation	Ratings	Standard Number	Voltage - Output	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Dimming	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Dimming [Min]	Dimming [Max]

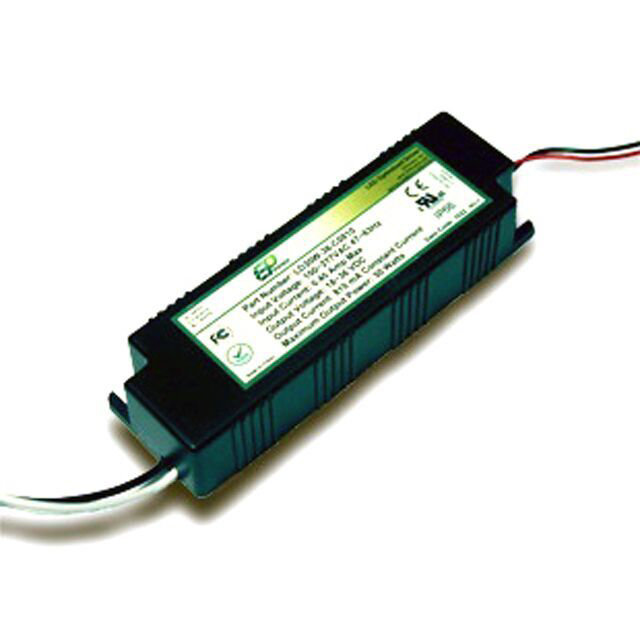

EPtronics, Inc. LD30W-12	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-30 ░C	60 °C	Wire Leads	CE cURus FCC	2.5 A	OCP OVP SCP	3750 VDC	IP66	C22.2 UL 8750	12 V	90 VAC	Constant Voltage	305 VAC	Non-Dimmable	83 %
EPtronics, Inc. LD30W-42-C0700-RD	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-40 C	60 °C	Wire Leads	CE cURus FCC	700 mA	OCP OVP SCP	2500 V	IP66	C22.2 UL 8750		100 VAC	Constant Current	305 VAC		85 %	42 V	21 V	0 V	10 V
EPtronics, Inc. LD30W-36	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-30 ░C	60 °C	Wire Leads	CE cURus FCC	830 mA	OCP OVP SCP	2500 V	IP66	C22.2 UL 8750	36 V	90 VAC	Constant Voltage	305 VAC	Non-Dimmable	84 %
EPtronics, Inc. LD30W-85-C0350-RD	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-40 C	60 °C	Wire Leads	CE cURus FCC	350 mA	OCP OVP SCP	2500 V	IP66	C22.2 UL 8750		100 VAC	Constant Current	305 VAC		86 %	85 V	42 V	0 V	10 V
EPtronics, Inc. LD30W-66-C0450-RD	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-40 C	60 °C	Wire Leads	CE cURus FCC	450 mA	OCP OVP SCP	2500 V	IP66	C22.2 UL 8750		100 VAC	Constant Current	305 VAC		85 %	66 V	33 V	0 V	10 V
EPtronics, Inc. LD30W-42-C0700	Chassis Mount			AC DC Converter	134.9 mm	5.31 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-30 ░C	60 °C	Wire Leads	CE cURus FCC	700 mA	OCP OVP SCP	3750 VDC	IP66			90 VAC	Constant Current	305 VAC	Analog PWM	85 %	42 V	14 V
EPtronics, Inc. LD30W-36-C0830-RD	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-40 C	60 °C	Wire Leads	CE cURus FCC	830 mA	OCP OVP SCP	2500 V	IP66	C22.2 UL 8750		100 VAC	Constant Current	305 VAC		84 %	36 V	18 V	0 V	10 V
EPtronics, Inc. LD30W-85-C0350	Chassis Mount			AC DC Converter	134.9 mm	5.31 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-30 ░C	60 °C	Wire Leads	CE cURus FCC	350 mA	OCP OVP SCP	3750 VDC	IP66			90 VAC	Constant Current	305 VAC	Analog PWM	86 %	85 V	28 V
EPtronics, Inc. LD30W-24	Chassis Mount	0.519 lb	235.32 g	AC DC Converter	124 mm	4.88 in	0.98 in	24.9 mm	1.69 "	42.9 mm	1	30 Watts	-30 ░C	60 °C	Wire Leads	CE cURus FCC	1.25 A	OCP OVP SCP	3750 VDC	IP66	C22.2 UL 8750	24 V	90 VAC	Constant Voltage	305 VAC	Non-Dimmable	84 %
