BS3P-SHF Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

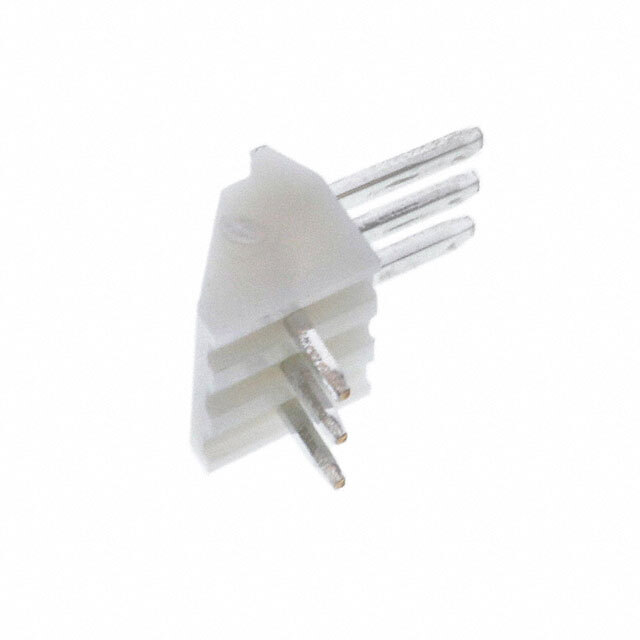

CONN HEADER R/A 3POS 2.5MM
| Part | Insulation Color | Mounting Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Finish - Post | Current Rating (Amps) | Contact Shape | Contact Length - Post | Contact Length - Post | Insulation Material | Material Flammability Rating | Shrouding | Termination | Insulation Height | Insulation Height | Style | Voltage Rating | Contact Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Through Hole Right Angle | Header | -25 °C | 85 °C | Brass | 0.217 in | 5.5 mm | Friction Lock | Tin | 3 A | Square | 0.118 in | 3 mm | Polyamide (PA66) Nylon 6/6 | UL94 V-0 | Unshrouded | Solder | 5.6 mm | 0.22 in | Board to Cable/Wire | 250 VDC | Male Pin | 2.5 mm | 0.098 in | All | 1 |
