1610-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .015-.025" .642"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 1610-0-15-01-30-14-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Gold	19.51 mm	0.768 in	0.25 Ám	10 Áin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in
Mill-Max Manufacturing Corp. 1610-0-15-80-30-27-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Gold	19.51 mm	0.768 in	0.76 Ám	30 Áin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in
Mill-Max Manufacturing Corp. 1610-0-15-80-30-14-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Gold	19.51 mm	0.768 in	0.25 Ám	10 Áin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in
Mill-Max Manufacturing Corp. 1610-0-15-80-30-84-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Tin	19.51 mm	0.768 in	2.54 µm	100 µin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in

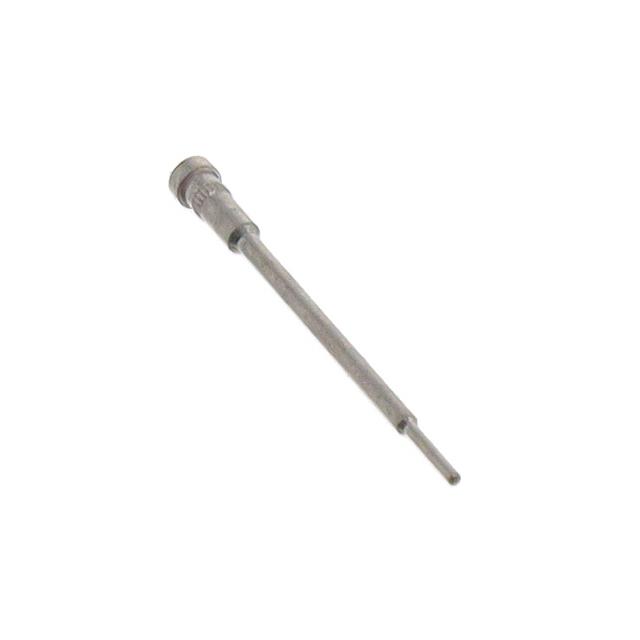

Mill-Max Manufacturing Corp. 1610-0-15-01-30-02-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Tin-Lead	19.51 mm	0.768 in	2.54 µm	100 µin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in
Mill-Max Manufacturing Corp. 1610-0-15-15-30-27-04-0	-55 C	125 °C	Press-Fit	Beryllium Copper	0.072 "	1.83 mm	Gold	19.51 mm	0.768 in	0.76 Ám	30 Áin	Standard Tail	0.021 in	0.53 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	4.22 mm	0.166 in
