79205 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

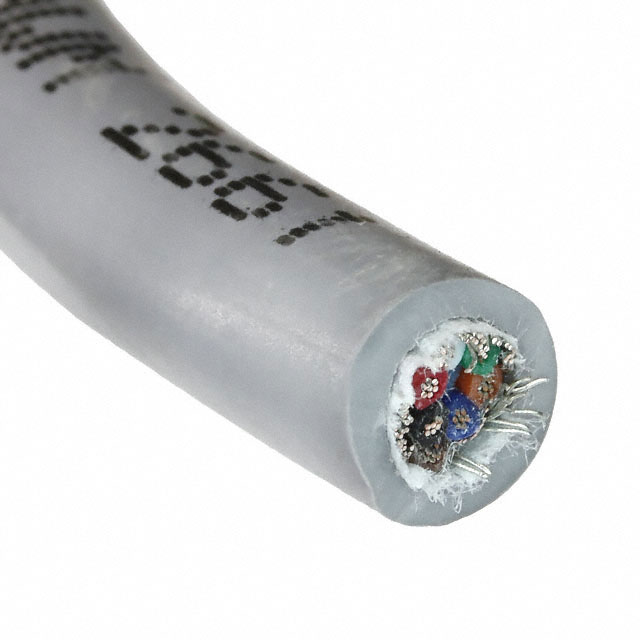

CABLE 7COND 20AWG SHLD
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Features | Wire Gauge | Conductor Insulation | Shield Coverage | Cable Type | Jacket (Insulation) Material | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.272 in | 6.91 mm | 7 | 1000 ft | 304.8 m | ISO 10993 | 0.889 mm | 0.035 in | Slate | Braid Foil | -40 °C | 105 ░C | 600 V | Biological Compatibility | 20 AWG | Polyphenylene Ether Modified (mPPE) | 70 % 100 % | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 30 AWG | 10 | Copper Tinned Suprashield® | ||
ALPHA WIRE | 0.272 in | 6.91 mm | 7 | ISO 10993 | 0.889 mm | 0.035 in | Slate | Braid Foil | -40 °C | 105 ░C | 600 V | Biological Compatibility | 20 AWG | Polyphenylene Ether Modified (mPPE) | 70 % 100 % | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 30 AWG | 10 | Copper Tinned Suprashield® | 30.5 m | 100 ft |
