MPA206 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

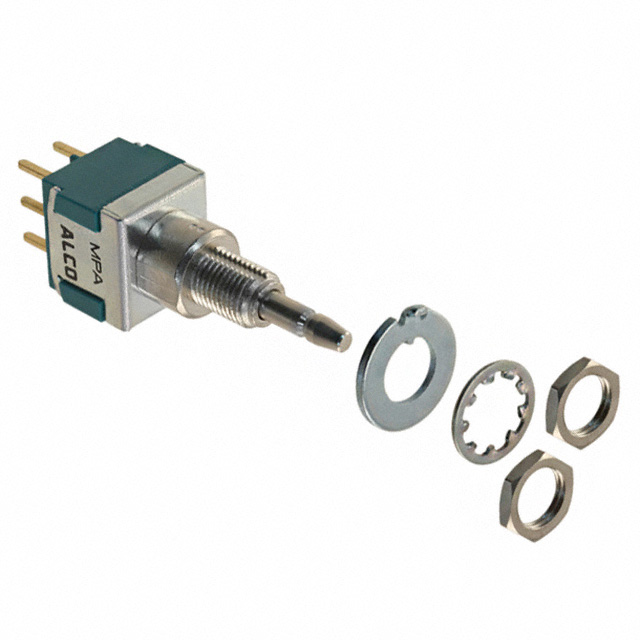

SWITCH PUSHBUTTON DPDT 6A 125V
| Part | Electrical Life | Termination Style | Circuit | Voltage Rating - DC | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Switch Function | Actuator Type | Actuator Marking | Current Rating (Amps) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50000 Cycles | PC Pin | DPDT | 28 V | 125 V | 0.25 in | 80 °C | -20 ░C | Panel Mount Rear | On-Mom | Plunger for Cap | No Marking | 4 A 6 A | Standard |
