044764 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD RCP 8 POS 3MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Part	Contact Shape	Contact Finish - Post	Mounting Type	Contact Material	Termination	Contact Finish - Mating	Features	Connector Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Applications	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Style	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Molex 0447640802	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	8	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	15 µin	0.38 µm
Molex 0447640602	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	6	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	15 µin	0.38 µm
Molex 0447641803	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	18	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	30 Áin	0.76 Ám
Molex 0447640401	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder		Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	1.02 Ám	40 Áin	-40 °C	105 ░C	5 A	4	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	40 µin	1.02 µm
Molex 0447641202	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	12	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	15 µin	0.38 µm

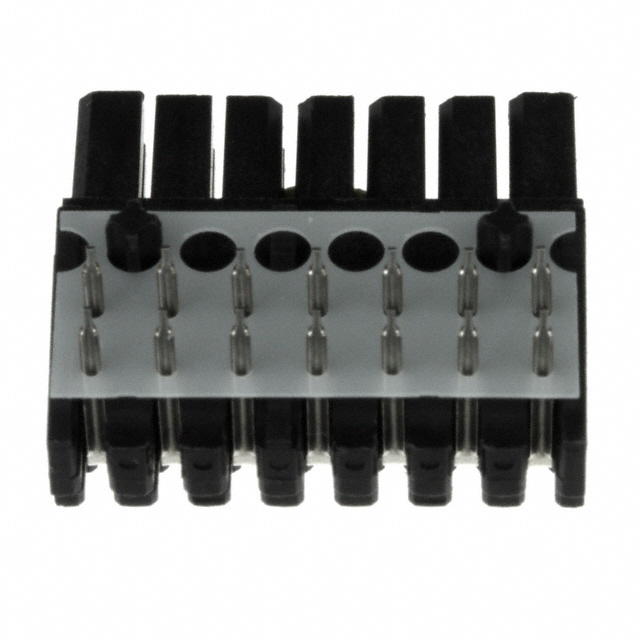

Molex 0447641402	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	14	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	15 µin	0.38 µm

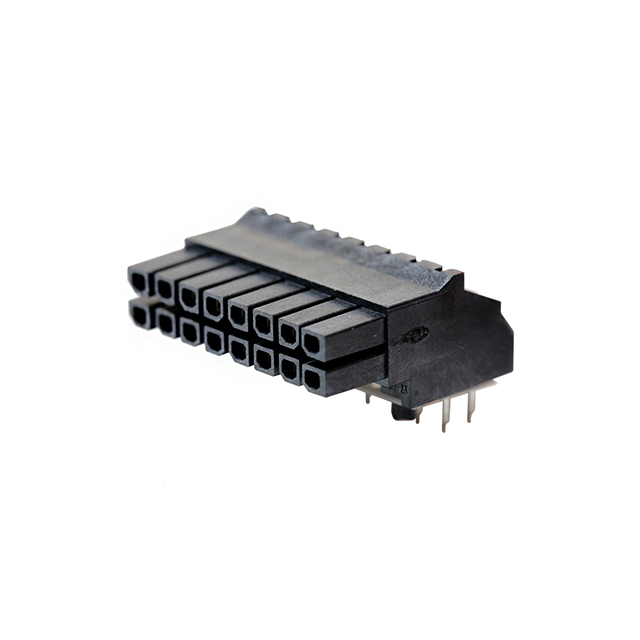

Molex 0447641603	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A		All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	30 Áin	0.76 Ám	16

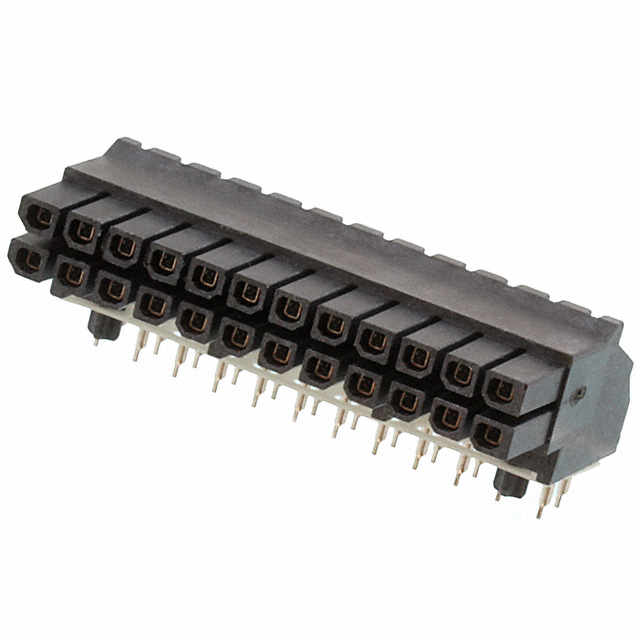

Molex 0447642401	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder		Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	1.02 Ám	40 Áin	-40 °C	105 ░C	5 A	24	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	40 µin	1.02 µm
Molex 0447641003	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	10	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	30 Áin	0.76 Ám
Molex 0447642002	Square	Tin	Through Hole Right Angle	Phosphor Bronze	Solder	Gold	Blind Mating Board Guide	Receptacle	Push-Pull	3 mm	0.118 in	UL94 V-0	3.94 mm	0.155 "	2	2.54 µm	100 µin	-40 °C	105 ░C	5 A	20	All	General Purpose Telecommunications	0.118 in	3 mm	600 VAC	Female Socket	0.402 in	10.2 mm	Board to Board Cable	Black	15 µin	0.38 µm
