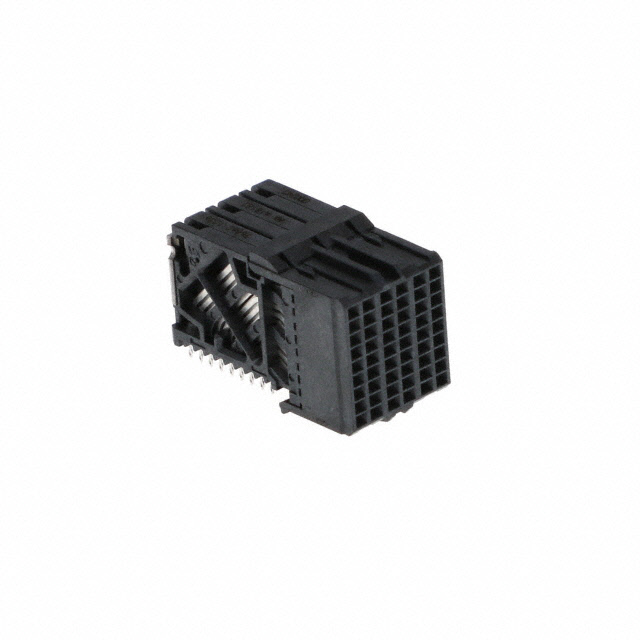

076860 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT IMPACT 54POS EDGE MNT
| Part | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Contact Finish | Mounting Type | Connector Type | Number of Rows | Contact Layout, Typical | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Material Flammability Rating | Color | Termination | Number of Positions Loaded | Connector Style | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

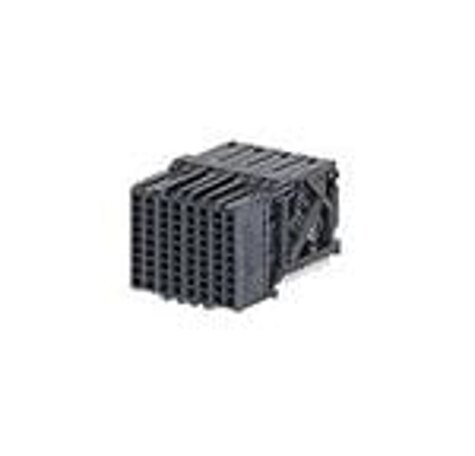

 Molex | 0.76 Ám | 30 Áin | 30 VDC | Gold | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 9 | 18 Differential Pairs | 85 °C | -55 °C | 54 | UL94 V-0 | Black | Press-Fit | All | Impact | 6 |
 Molex | 0.76 Ám | 30 Áin | 30 VDC | Gold | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 9 | 24 Differential Pairs | 85 °C | -55 °C | 72 | UL94 V-0 | Black | Press-Fit | All | Impact | 8 |

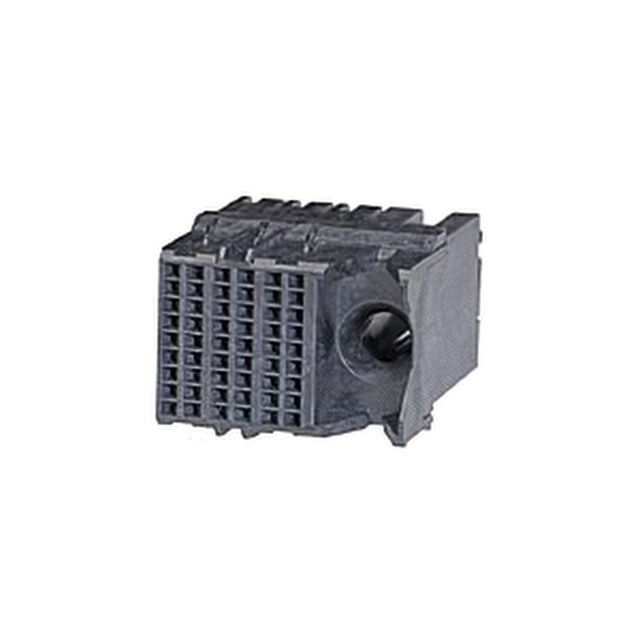

 Molex | 0.76 Ám | 30 Áin | 30 VDC | Gold | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 9 | 18 Differential Pairs | 85 °C | -55 °C | 54 | UL94 V-0 | Black | Press-Fit | All | 6 |
