AAA3528 Series

Catalog

LED GRN/RED CLEAR SMD BOTTOM ENT

Part	Lens Color	Viewing Angle	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Lens Size [diameter]	Mounting Type	Configuration	Lens Style	Lens Transparency	Wavelength - Peak	Millicandela Rating	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current	Voltage Rating	Lens Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current [custom]	Current [custom]	Current [custom]	Height (Max) [Max] [z]	Current - Test	Wavelength - Dominant	Current - Test [custom]
Kingbright AAA3528SURKCGKC09	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Green Red	20 mA	20 mA	570nm Green 630nm Red	2.4 mm Dia	Surface Mount Bottom Entry	Independent	Round with Flat Top	Clear	574 nm 645 nm	80 mcd 100 mcd	4-SMD Gull Wing	1.95 V 2.1 V	SMD

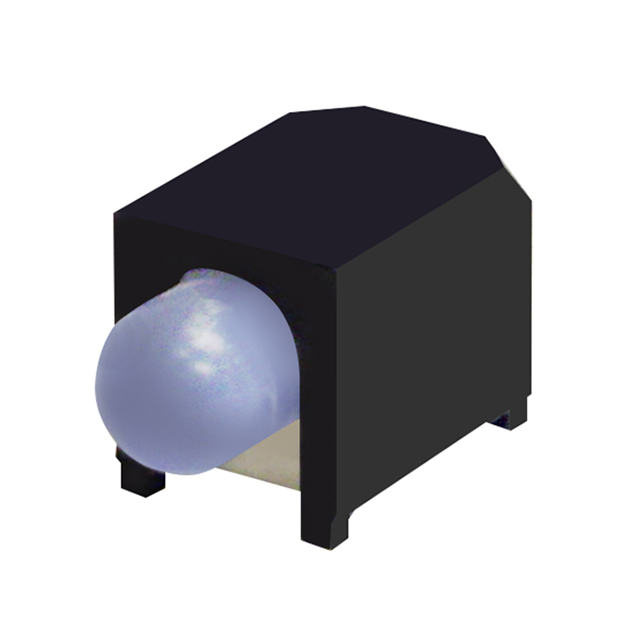

Kingbright AAA3528AVU/AZGKSYKCT		50 °				Green Yellow				2.85 mm	Right Angle Surface Mount	Single	Round with Domed Top		515 nm 590 nm	130 mcd 300 mcd				20mA Green 20mA Yellow	2 V 3.3 V	Clear
Kingbright AAA3528AVU/ARBGS-112		60 °				Blue Green Red				2.85 mm	Right Angle Surface Mount	Single	Round with Domed Top		465 nm 515 nm 630 nm						2 V 3.3 V 3.3 V	Clear	80 mcd	80 mcd	200 mcd	20 mA	20 mA	20 mA
Kingbright AAA3528SURKCGKCT	Colorless	120 °		2.8 mm	3.2 mm	Green Red	20 mA	20 mA	570nm Green 630nm Red	2.4 mm Dia	Surface Mount	Independent	Round with Flat Top	Clear	574 nm 645 nm	80 mcd 320 mcd	4-PLCC	1.95 V 2.1 V	4-SMD										2.15 mm
Kingbright AAA3528SEKJ3ZGKQBKS	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Blue Green Red			465nm Blue 525nm Green 625nm Red	2.4 mm Dia	Surface Mount	Common Cathode	Round with Flat Top	Clear	460 nm 515 nm 640 nm		4-PLCC	2.2 V 3.3 V 3.3 V	4-SMD				500 mcd	200 mcd	600 mcd					20mA Blue 20mA Green 20mA Red
Kingbright AAA3528SEEZGGVBDS	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Blue Green Red				2.4 mm Dia	Surface Mount	Common Anode	Round with Flat Top	Clear	465 nm 520 nm 630 nn		4-PLCC	2 V 3.2 V 3.3 V	4-SMD				220 mcd	330 mcd	1600 mcd					20mA Blue 20mA Green 20mA Red	470 nm 525 nm 621 nm

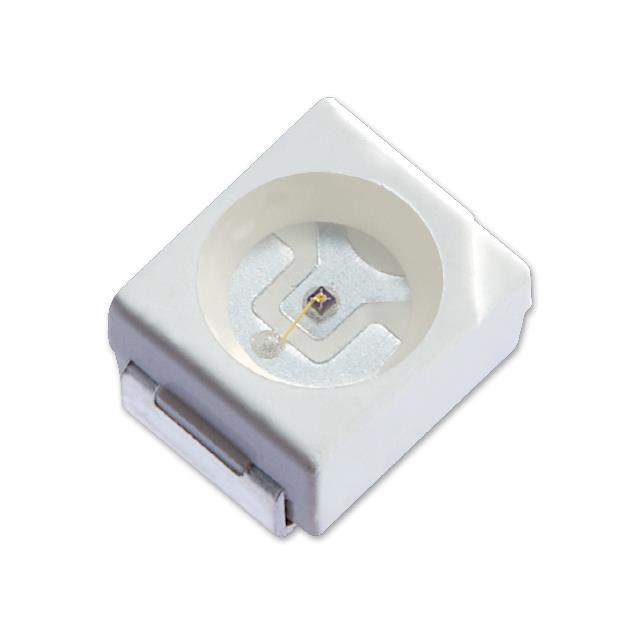

Kingbright AAA3528LSEEZGKQBKS	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	2 mA	2 mA		2.4 mm Dia	Surface Mount	Common Anode	Round with Flat Top	Clear	460 nm 515 nm 630 nm		4-PLCC	1.8 V 2.7 V 2.7 V	4-SMD				20 mcd	30 mcd	180 mcd						465 nm 525 nm 621 nm	2 mA
Kingbright AAA3528AVU/ASYKCGKCT		50 °				Green Yellow				2.85 mm	Right Angle Surface Mount	Single	Round with Domed Top		574 nm 590 nm					20mA Green 20mA Yellow	2 V 2.1 V	Clear
Kingbright AAA3528SURKCGKS	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Green Red	20 mA	20 mA	570nm Green 630nm Red	2.4 mm Dia	Surface Mount	Independent	Round with Flat Top	Clear	574 nm 650 nm	80 mcd 100 mcd	4-PLCC	1.95 V 2.1 V	4-SMD
Kingbright AAA3528SURKCGKC	Colorless	120 °	2.1 mm	2.8 mm	3.2 mm	Green Red	20 mA	20 mA	570nm Green 635nm Red	2.4 mm Dia	Surface Mount	Independent	Round with Flat Top	Clear	574 nm 650 nm		4-PLCC	1.95 V 2.1 V	4-SMD				200 mcd		80 mcd
