D38999/24JF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

JAM NUT RECEPTACLE

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Shell Finish	Mounting Type	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Qualification	Contact Material	Applications	Insert Material	Termination	Grade	Shell Size, MIL	Number of Positions	Shell Material	Shielding	Voltage Rating	Primary Material	Ingress Protection	Fastening Type	Connector Type	Mounting Feature	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)
TE Connectivity AMP Connectors D38999/24JF35HE	19	35	E	Olive Drab Cadmium	Panel Mount	Olive Drab	50 µin	1.27 µm	MIL-DTL-38999 Series III	Copper Alloy	Aerospace Military	Thermoplastic	Crimp	Military	F	66	Composite	Shielded	400 VAC 550 VDC	Composite	Environment Resistant	Threaded	Receptacle Male Pins	Bulkhead - Front Side Nut	Gold	-65 ░C	175 °C
TE Connectivity AMP Connectors D38999/24JF35SN	19	35	N (Normal)	Olive Drab Cadmium	Panel Mount	Olive Drab	50 µin	1.27 µm	MIL-DTL-38999 Series III	Copper Alloy	Aerospace Military	Thermoplastic	Crimp	Military	F	66	Composite	Shielded	400 VAC 550 VDC	Composite	Environment Resistant	Threaded	Receptacle Female Sockets	Bulkhead - Front Side Nut	Gold	-65 ░C	175 °C
TE Connectivity AMP Connectors D38999/24JF32SN	19	32	N (Normal)	Olive Drab Cadmium	Panel Mount	Olive Drab	50 µin	1.27 µm	MIL-DTL-38999 Series III	Copper Alloy	Aerospace Military	Thermoplastic	Crimp	Military			Composite	Shielded	600 VAC	Composite	Environment Resistant	Threaded	Receptacle Female Sockets	Bulkhead - Front Side Nut	Gold	-65 ░C	175 °C	850 VDC	7.5 A

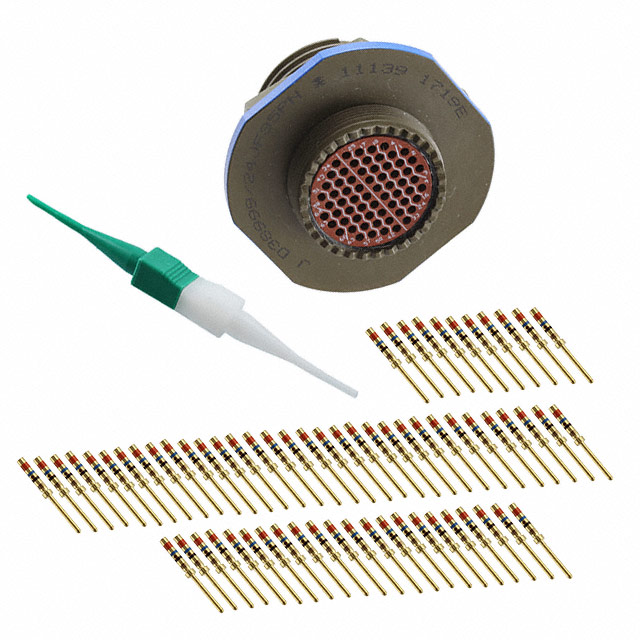

TE Connectivity AMP Connectors D38999/24JF35PN	19	35	N (Normal)	Olive Drab Cadmium	Panel Mount	Olive Drab	50 µin	1.27 µm	MIL-DTL-38999 Series III	Copper Alloy	Aerospace Military	Thermoplastic	Crimp	Military	F	66	Composite		400 VAC 550 VDC	Composite	Environment Resistant	Threaded	Receptacle Male Pins	Bulkhead - Front Side Nut	Gold	-65 ░C	175 °C
