1586768 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

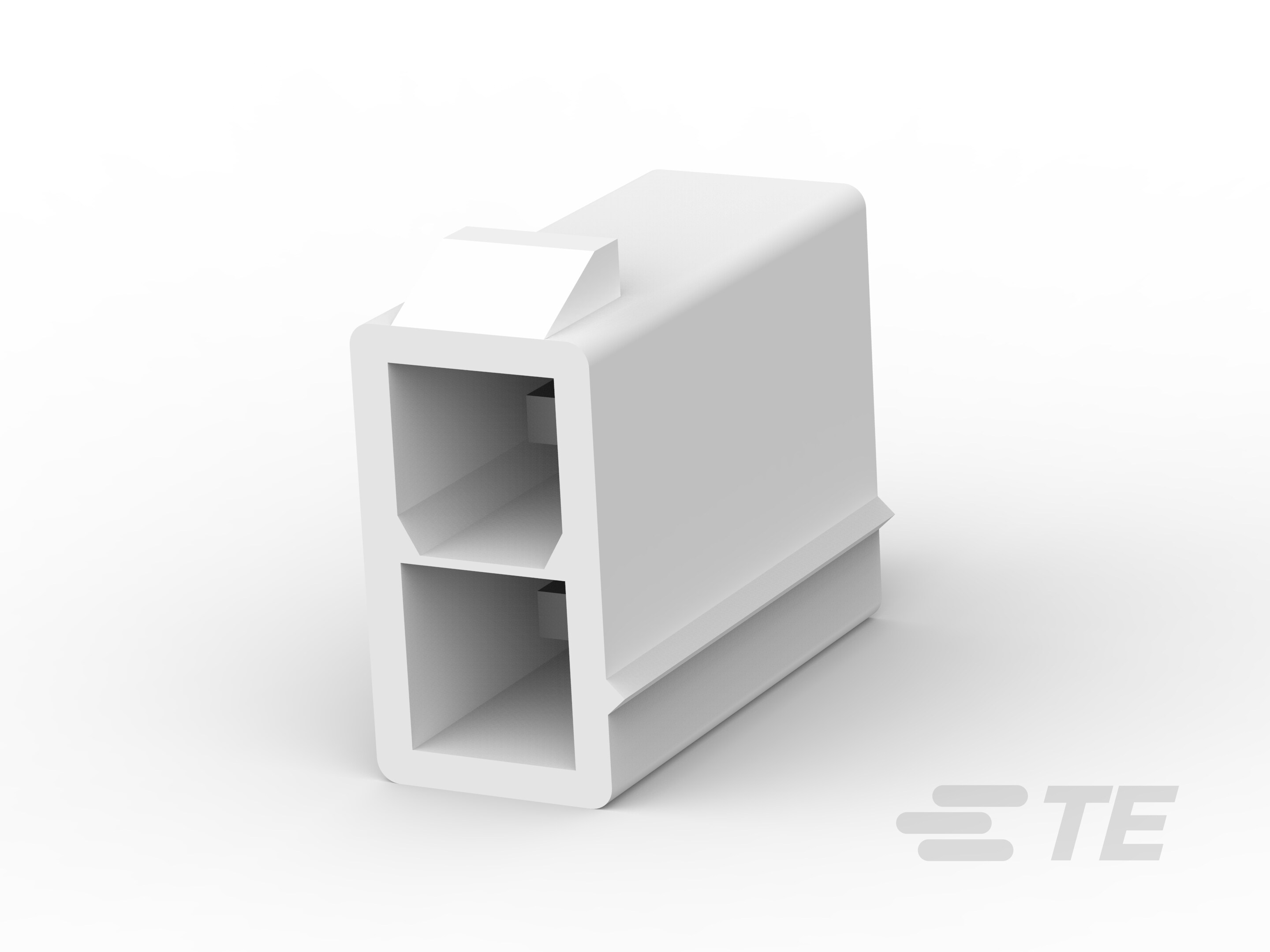

2P VERT HDR VAL-U-LOK GW

Part	Applications	Mounting Type	Voltage Rating	Number of Rows [custom]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Shape	Contact Finish - Post	Connector Type	Current Rating (Amps)	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Material	Termination	Features	Fastening Type	Number of Positions	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Shrouding	Style	Pitch - Mating	Pitch - Mating

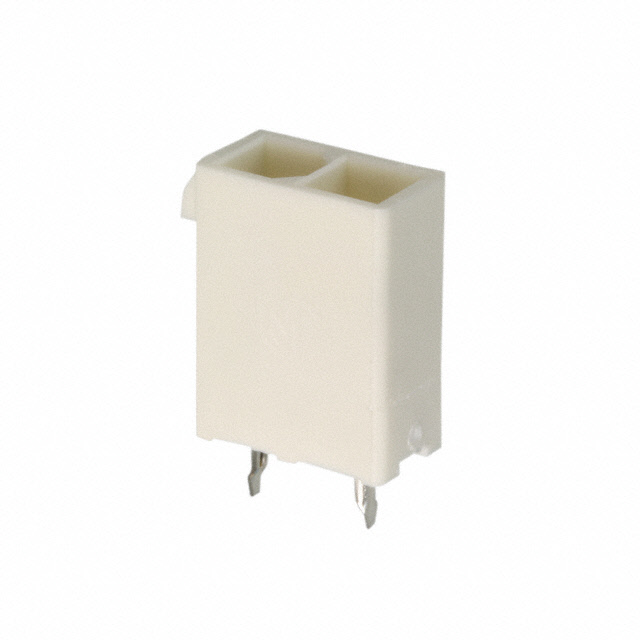

TE Connectivity AMP Connectors 1586768-2	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	2	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire
TE Connectivity AMP Connectors 1586768-4	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	4	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire	0.165 in	4.2 mm
TE Connectivity AMP Connectors 2-1586768-2	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	22	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire	0.165 in	4.2 mm
TE Connectivity AMP Connectors 1-1586768-6	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	16	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire	0.165 in	4.2 mm

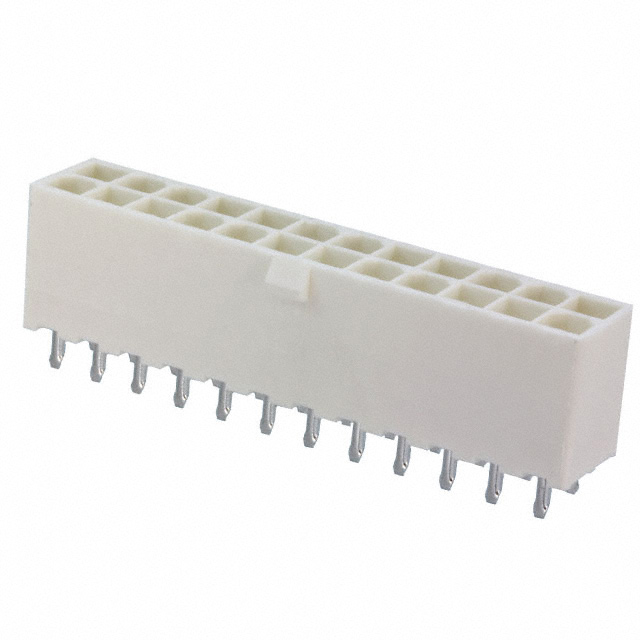

TE Connectivity AMP Connectors 2-1586768-4	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	24	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire	0.165 in	4.2 mm
TE Connectivity AMP Connectors 1-1586768-4	General Purpose Industrial Lighting	Through Hole	600 VAC	2	UL94 V-2	0.165 in	4.2 mm	All	Square	Tin	Header	9 A	Brass	0.138 in	3.5 mm	Nylon Polyamide (PA)	Solder	Glow Wire Compliant	Locking Ramp	14	Male Pin	White	-40 C	105 ░C	12.8 mm	0.504 "	Shrouded - 4 Wall	Board to Cable/Wire	0.165 in	4.2 mm
