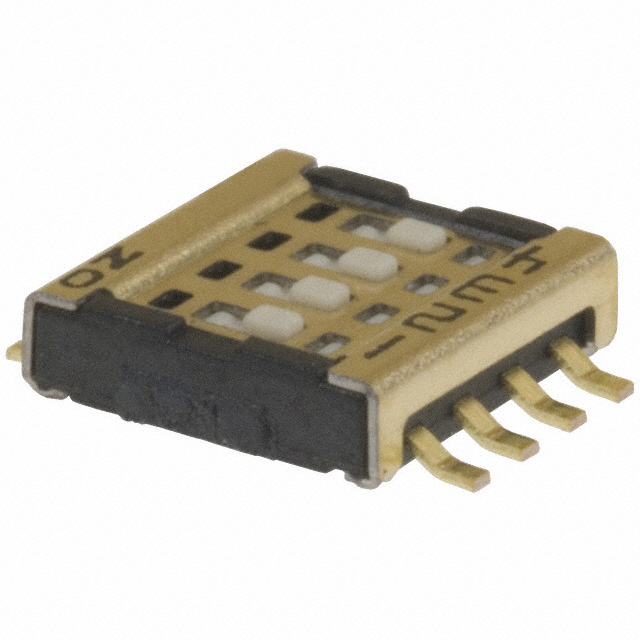

CVS-04T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
DIP SWITCH, 4POS, SPST, SLIDE, SMD
| Part | Mounting Type | Actuator Type | Pitch [x] | Pitch [x] | Actuator Level | Contact Finish | Washable | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Body Material | Current Rating (Amps) | Number of Positions | Termination Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Surface Mount | Slide (Standard) | 0.039 in | 1 mm | Raised | Gold | 0.057 in | 1.45 mm | 6 VDC | 1000 Cycles | 85 °C | -40 °C | SPST | Polyphenylene Sulfide (PPS) | 100 mA | 4 | Gull Wing | Stainless Steel | |
 Nidec Components Corporation | Surface Mount | Slide (Standard) | 0.039 in | 1 mm | Raised | Gold | 0.057 in | 1.45 mm | 6 VDC | 1000 Cycles | 85 °C | -40 °C | SPST | Polyphenylene Sulfide (PPS) | 100 mA | 4 | Gull Wing | Stainless Steel |
