NLSX3018 Series

8-Bit 100 Mb/s Configurable Dual-Supply Level Translator

Catalog

8-Bit 100 Mb/s Configurable Dual-Supply Level Translator

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Channels per Circuit	Channel Type	Translator Type	Data Rate	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Features	Supplier Device Package	Number of Circuits	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Package / Case [y]	Package / Case	Package / Case [x]
ON Semiconductor NLSX3018DTR2G	85 °C	-40 °C	Surface Mount	Non-Inverted Tri-State	8	Bidirectional	Voltage Level	110 MBd	4.5 V	0.9 V	Auto-Direction Sensing	20-TSSOP	1	4.5 V	1.3 V	4.4 mm	20-TSSOP	0.173 in

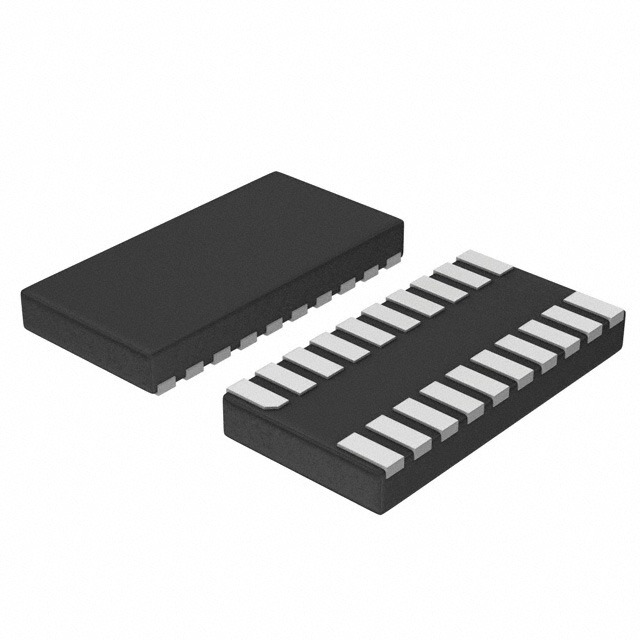

ON Semiconductor NLSX3018MUTAG	85 °C	-40 °C	Surface Mount	Non-Inverted Tri-State	8	Bidirectional	Voltage Level	110 MBd	4.5 V	0.9 V	Auto-Direction Sensing	20-UDFN (4x2)	1	4.5 V	1.3 V		20-UFDFN

Catalog

8-Bit 100 Mb/s Configurable Dual-Supply Level Translator

Key Features

• Wide Operating Range 1.3V to 4.5V

• High-Speed with 100 Mb/s Guaranteed Data Rate for VL > 1.6V

• Overvoltage Toerant Enable and I/O Pins

• Small Packaging: 4.0 mm x 2.0 mm UQFN20

Description

The NLSX3018 is a 8 bit configurable dual supply bidirectional level translator without a direction control pin. The I/O VCC- and I/O VL- ports are designed to track two different power supply rails, VCC and VL respectively. The VCC supply rail is configurable from 1.3 V to 4.5 V while the VL supply rail is configurable from 0.9 V to (VCC - 0.4) V. This allows lower voltage logic signals on the VL side to be translated into higher voltage logic signals on the VCC side, and vice versa. Both I/O ports are auto sensing not requiring a direction pin.
