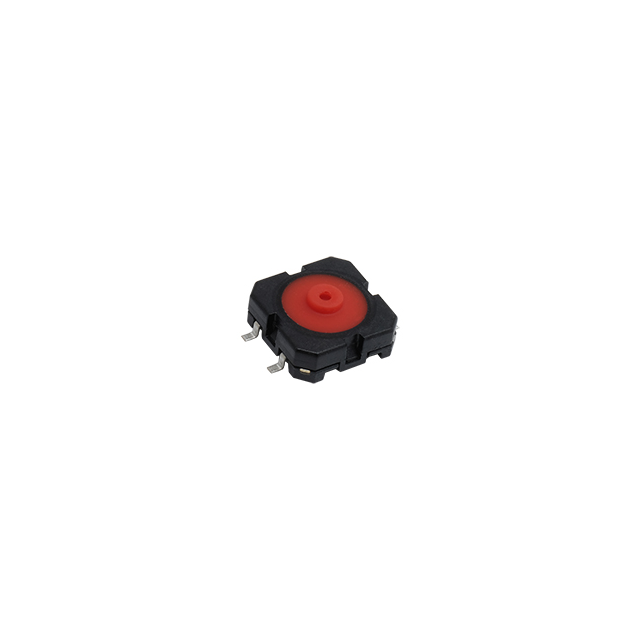

Mid-Travel, Soft Sound Tact Switch
Description
AI
SFS, the mid-travel and soft sound tactile solution, construction with standard overall dimension 12 x 12 mm with 360, 680 & 970 gf version options.
Beta
⌘K
Mid-Travel, Soft Sound Tact Switch
Mid-Travel, Soft Sound Tact Switch
| Part | Switch Travel | Mechanical Life | Switch Function | Outline [y] | Outline [x] | Actuator Orientation | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Mounting Type | Actuator Type | Operating Force | Circuit | Illumination | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.8 mm | 300000 Cycles | Off-Mom | 12 mm | 12 mm | Top Actuated | IP40 | 90 °C | -40 C | 4.95 mm | 0.1 A 35 VDC | Surface Mount | Standard | 970 gf | SPST-NO | Non-Illuminated | Gull Wing |
 LITTELFUSE | 0.7 mm | 300000 Cycles | Off-Mom | 12 mm | 12 mm | Top Actuated | IP40 | 90 °C | -40 C | 4.95 mm | 0.1 A 35 VDC | Surface Mount | Standard | 0.68 kgf | SPST-NO | Non-Illuminated | Gull Wing |
 LITTELFUSE | 0.6 mm | 300000 Cycles | Off-Mom | 12 mm | 12 mm | Top Actuated | IP40 | 90 °C | -40 C | 4.95 mm | 0.1 A 35 VDC | Surface Mount | Standard | 360 gf | SPST-NO | Non-Illuminated | Gull Wing |
