SSF-LXH240 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED CBI 3MM BI-LVL GRN/RED RA

Part	Millicandela Rating	Lens Size	Lens Size	Mounting Type	Wavelength - Peak	Color	Viewing Angle	Lens Type	Configuration	Current [custom]	Current [custom]	Voltage Rating	Lens Style	Current	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH240SUGSID	180 mcd 1000 mcd	3 mm	T-1	Right Angle Through Hole	574 nm 650 nm	Green (x 1) Red (x 1)	40 °	Diffused	2 High	10 mA	10 mA	1.9 V 2.1 V	Round with Domed Top
Lumex Opto/Components Inc. SSF-LXH240GID	30 mcd 30 mcd			Right Angle Through Hole	565 nm 627 nm	Green Red	40 °	Diffused	2 High			2 V 2.2 V	Round with Domed Top	25 mA 30 mA
Lumex Opto/Components Inc. SSF-LXH240YYD	100 mcd	3 mm	T-1	Right Angle Through Hole	590 nm	Yellow (x 2)	60 °	Diffused Tinted	2 High			2.1 V	Round with Domed Top	20 mA

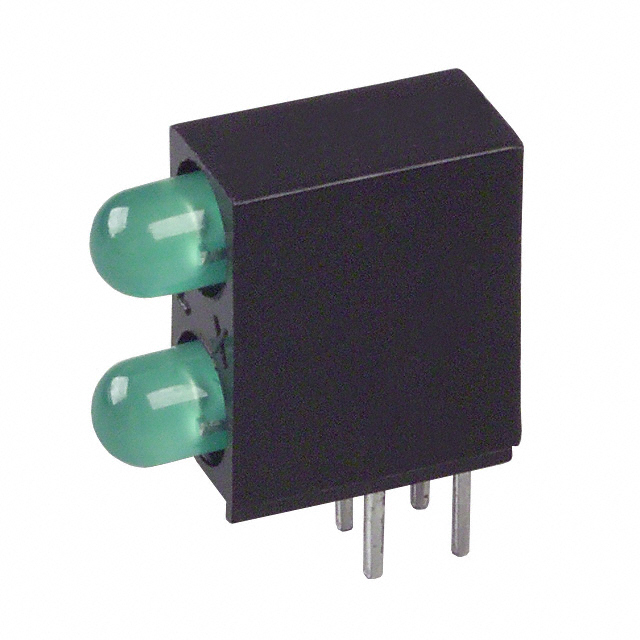

Lumex Opto/Components Inc. SSF-LXH240GGD	40 mcd			Right Angle Through Hole	565 nm	Green (x 2)	60 °	Diffused Tinted	2 High				Round with Domed Top	20 mA	2.9 mm
Lumex Opto/Components Inc. SSF-LXH240LIID	15 mcd	3 mm	T-1	Right Angle Through Hole	635 nm	Red	80 °	Diffused Tinted	2 High			2 V	Round with Domed Top	20 mA
Lumex Opto/Components Inc. SSF-LXH240GYD	15 mcd	3 mm	T-1	Right Angle Through Hole	565 nm 585 nm	Green (x 1) Yellow (x 1)	80 °	Diffused Tinted	2 High			2.1 V	Round with Domed Top	20 mA
Lumex Opto/Components Inc. SSF-LXH240IGD	30 mcd 40 mcd	3 mm	T-1		565 nm 635 nm	Green (x 1) Red (x 1)	60 °	Diffused Tinted	2 High			2 V 2.2 V	Round with Domed Top	25 mA 30 mA
Lumex Opto/Components Inc. SSF-LXH240YGD	15 mcd	3 mm	T-1	Right Angle Through Hole	565 nm 585 nm	Green (x 1) Yellow (x 1)	80 °	Diffused Tinted	2 High			2.1 V	Round with Domed Top	20 mA

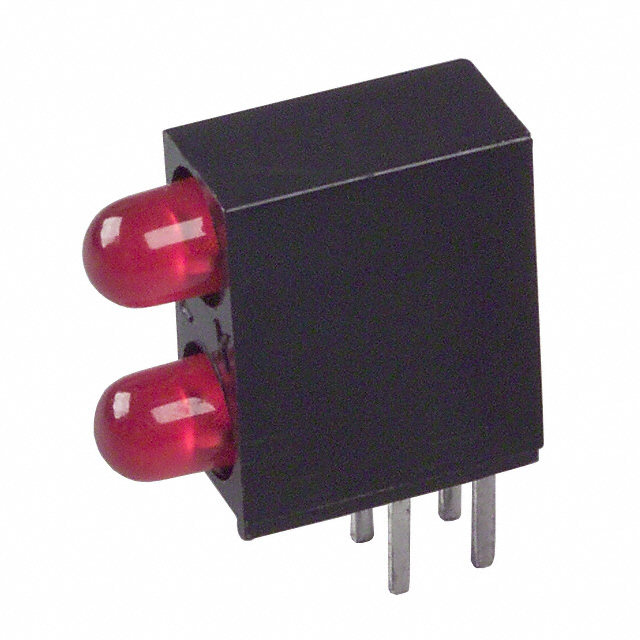

Lumex Opto/Components Inc. SSF-LXH240IID	15 mcd			Right Angle Through Hole	635 nm	Red	80 °	Diffused Tinted	2 High			2 V	Round with Domed Top	20 mA	2.9 mm
