BH16NF Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPST 1A 125V
| Part | Electrical Life | Voltage Rating - DC | Circuit | Features | Panel Cutout Dimensions [diameter] | Type | Switch Function | Color - Actuator/Cap | Termination Style | Voltage Rating - AC | Mounting Type | Actuator Marking | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

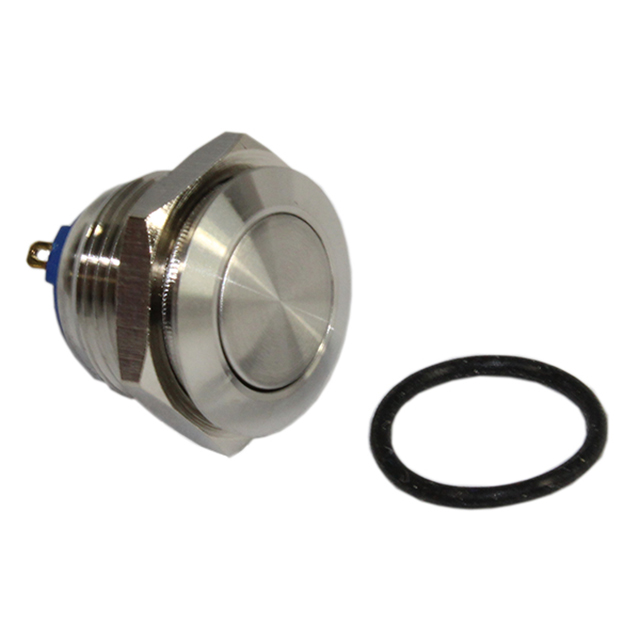

 CIT Relay and Switch | 50000 Cycles | 36 VDC | SPST | Stainless Steel | 16 mm | Anti-Vandal | Off-Mom | Silver | Solder Lug | 125 V | Panel Mount Front | No Marking | 1 A 2 A | 55 °C | -25 °C | Button Flush Round | IP67 - Dust Tight Waterproof |

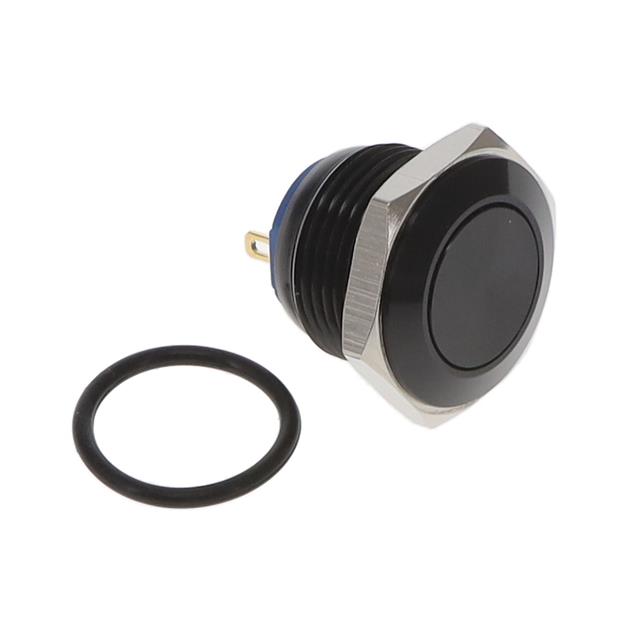

 CIT Relay and Switch | 50000 Cycles | 36 VDC | SPST | 16 mm | Anti-Vandal | Off-Mom | Black | Solder Lug | 125 V | Panel Mount Front | No Marking | 1 A 2 A | 55 °C | -25 °C | Button Flush Round | IP67 - Dust Tight Waterproof | |

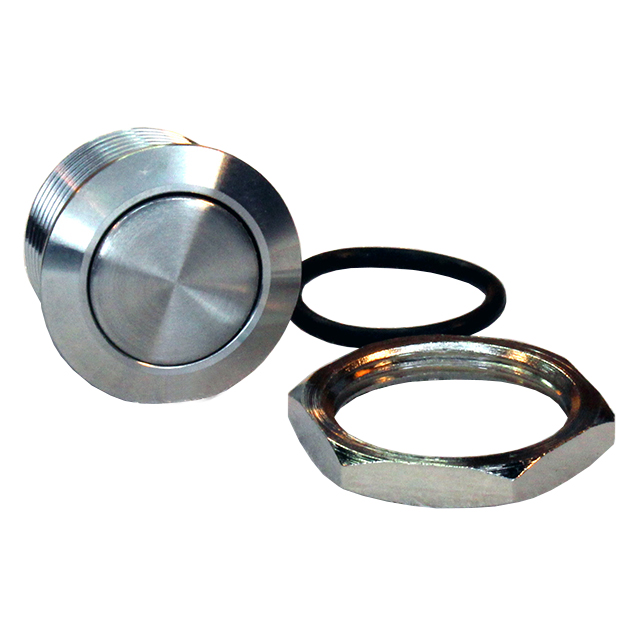

 CIT Relay and Switch | 50000 Cycles | 36 VDC | SPST SPST-NO | Stainless Steel | 16 mm | Anti-Vandal | Off-Mom | Silver | Screw Terminal | 125 V | Panel Mount Front | No Marking | 1 A 2 A | 55 °C | -25 °C | Button Flush Round | IP67 - Dust Tight Waterproof |
