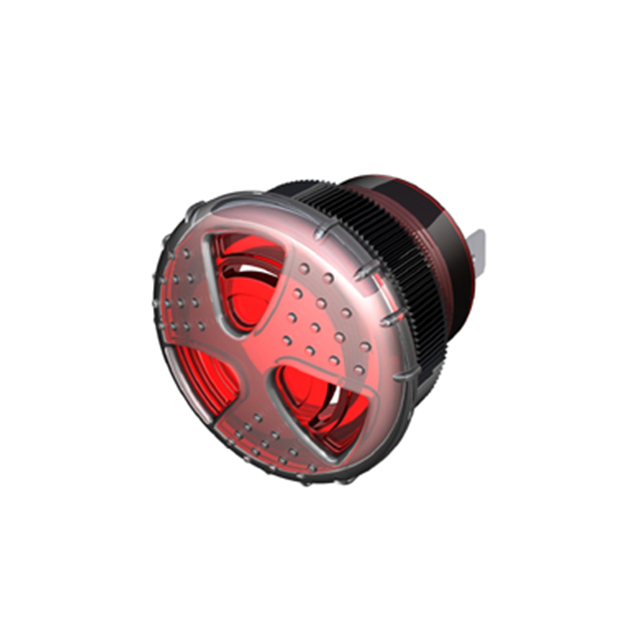

TUHB-V88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Mounting Type | Driver Circuitry | Voltage Range [Max] | Voltage Range [Min] | Port Location | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Approval Agency | Current - Supply [Max] | Current - Supply [Min] | Termination | Termination | Termination | Sound Pressure Level (SPL) | Ingress Protection | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Panel Mount | Indicator Internally Driven | 30 V | 9 V | Top | Fast Pulse | 1.41 in | 35.81 mm | 3 kHz | 1.25 " | 31.75 mm | UL UR | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm | 103 dB | IP68 - Dust Tight Waterproof | DC |
 Floyd Bell Inc | Panel Mount | Indicator Internally Driven | 30 V | 9 V | Top | Pulse Slow | 1.41 in | 35.81 mm | 3 kHz | 1.25 " | 31.75 mm | UL UR | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm | 103 dB | IP68 - Dust Tight Waterproof | DC |
Floyd Bell Inc | Panel Mount | Indicator Internally Driven | 30 V | 9 V | Top | Medium Pulse | 1.41 in | 35.81 mm | 3 kHz | 1.25 " | 31.75 mm | UL UR | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm | 103 dB | IP68 - Dust Tight Waterproof | DC |
Floyd Bell Inc | Panel Mount | Indicator Internally Driven | 30 V | 9 V | Top | Fast Pulse | 1.41 in | 35.81 mm | 3 kHz | 1.25 " | 31.75 mm | UL UR | 125 mA | 65 mA | Quick Connect Tab | 0.25 " | 6.35 mm | 103 dB | IP68 - Dust Tight Waterproof | DC |
