9008-1213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

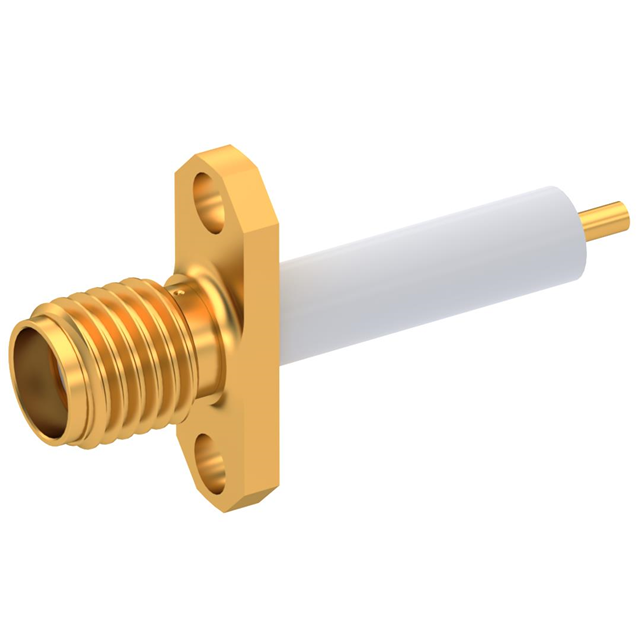

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Body Material | Center Contact Plating | Dielectric Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Impedance | Shield Termination | Frequency - Max [Max] | Connector Style | Features | Contact Termination | Connector Type | Number of Ports | Fastening Type | Center Contact Material | Mounting Feature | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Panel Mount Through Hole | 50 Ohms | Solder | 18 GHz | SMA | Extended Insulation | Solder | Female Socket Jack | 1 | Threaded | Beryllium Copper | Flange | Gold |
