BQ20Z90 Series

Catalog

IC GAS GAUGE LI-ION 30TSSOP

Part	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Battery Chemistry	Mounting Type	Fault Protection	Function	Supplier Device Package	Package / Case [x]	Package / Case [y]	Package / Case	Secondary Attributes	Contents	Type	Primary Attributes [Max]	Primary Attributes	Primary Attributes [Min]	Supplied Contents
Texas Instruments BQ20Z90DBT-V110G4	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
Texas Instruments BQ20Z90DBTR	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
Texas Instruments BQ20Z90DBT-V150	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
Texas Instruments BQ20Z90DBTR-V150	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
Texas Instruments BQ20Z90DBT-V110	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
Texas Instruments BQ20Z90DBTR-V110G4	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP

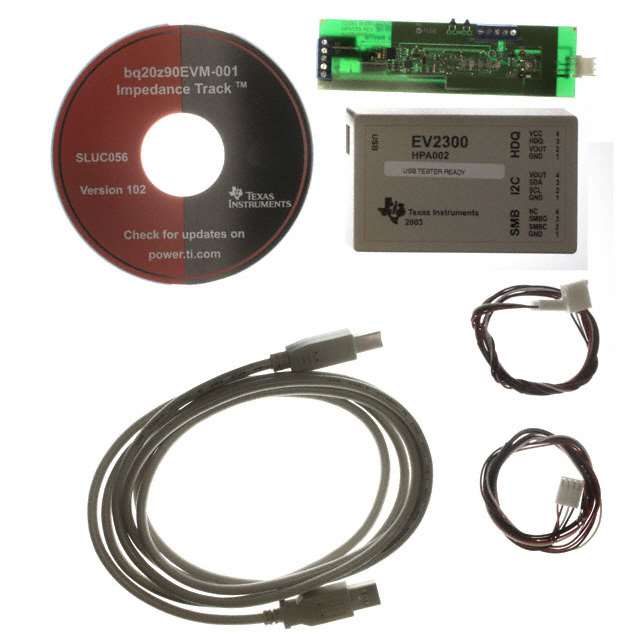

Texas Instruments BQ20Z90EVM-001							Battery Gauge					Graphical User Interface (GUI)	Accessories Board(s) Cable(s)	Power Management	4 Cells	Li-Ion Li-Pol	2 Cells	Accessories Board(s) Cable(s)
Texas Instruments BQ20Z90DBT	SMBus	85 °C	-40 °C	Lithium Ion/Polymer	Surface Mount	Over Current Over Temperature Over/Under Voltage Short Circuit	Battery Monitor	30-TSSOP	0.173 in	4.4 mm Width	30-TFSOP
