184A025 Series

Catalog

STANDARD D SUB CONNECTOR, 184A SERIES, DB, PLUG, 25, STEEL BODY, IDC / IDT ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Dielectric Material	Contact Material	Color	Number of Positions	Features	Connector Style	Material Flammability Rating	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Type	Termination	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Mounting Type	Flange Feature

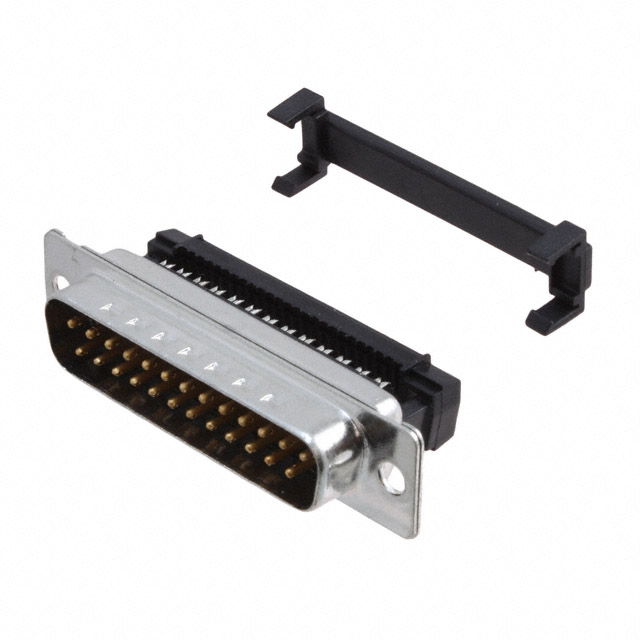

NorComp Inc. 184A025-192L001	-55 C	125 °C	28 AWG	Polyester Glass Filled	Copper Alloy	Black	25	Feed Through Grounding Indents Strain Relief	D-Sub	UL94 V-0	Gold	B DB	3	Signal	IDC Ribbon Cable	Flash	Plug Male Pins	1.5 A	2	Panel Mount	Housing/Shell (Unthreaded)

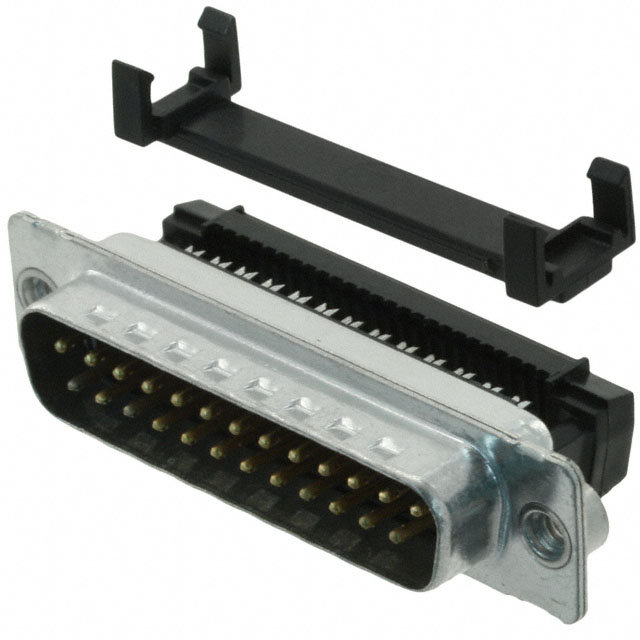

NorComp Inc. 184A025-192L011	-55 C	125 °C	28 AWG	Polyester Glass Filled	Copper Alloy	Black	25	Feed Through Grounding Indents Strain Relief	D-Sub	UL94 V-0	Gold	B DB	3	Signal	IDC Ribbon Cable	Flash	Plug Male Pins	1.5 A	2	Panel Mount	Cable Side (4-40)
