USUG1000-303J Series

UL-RATED NTC THERM 30K OHM 5% DO35

Catalog

UL-RATED NTC THERM 30K OHM 5% DO35

Part	Resistance Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	B0/50	Mounting Type	Length - Lead Wire [x]	Length - Lead Wire [x]	Power - Max [Max]	Resistance in Ohms @ 25°C	Package / Case
LITTELFUSE USUG1000-303J	5 %	-40 C	150 °C	3892 K	Through Hole	25.4 mm	1 in	20 mW	30 kOhms	Axial DO-204AH DO-35

Catalog

UL-RATED NTC THERM 30K OHM 5% DO35

Description

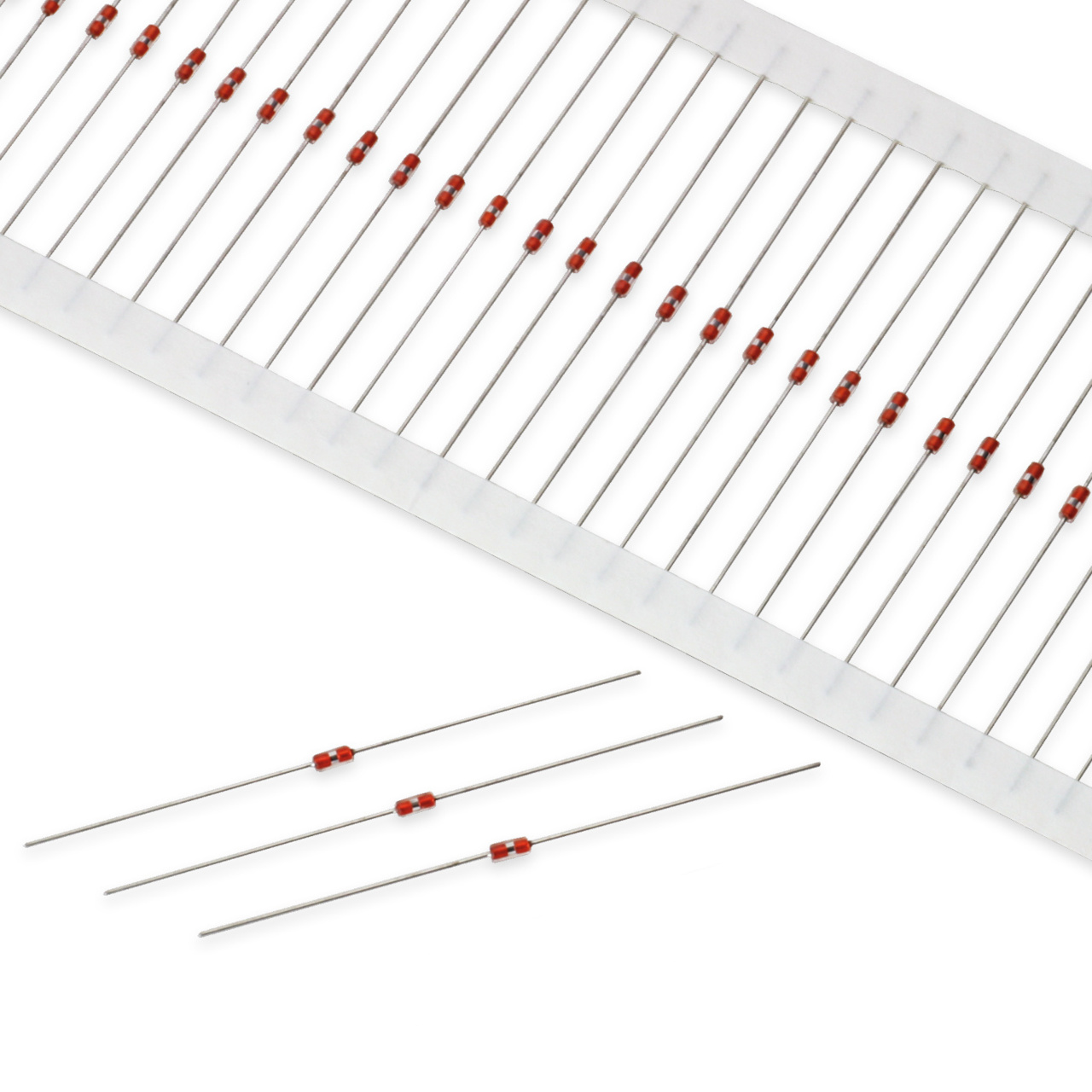

Littelfuse UL Recognized glass encapsulated thermistors are manufactured using super stable NTC chips which are hermetically sealed in a glass (DO-35 diode style) package. The result is a device which exhibits excellent long-term reliability and stability even when subjected to severe environmental or thermal conditions. Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment.
