MHDR Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

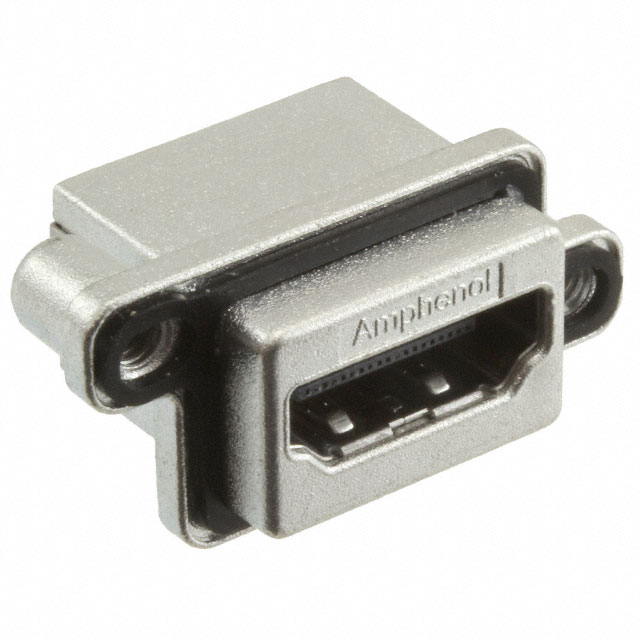

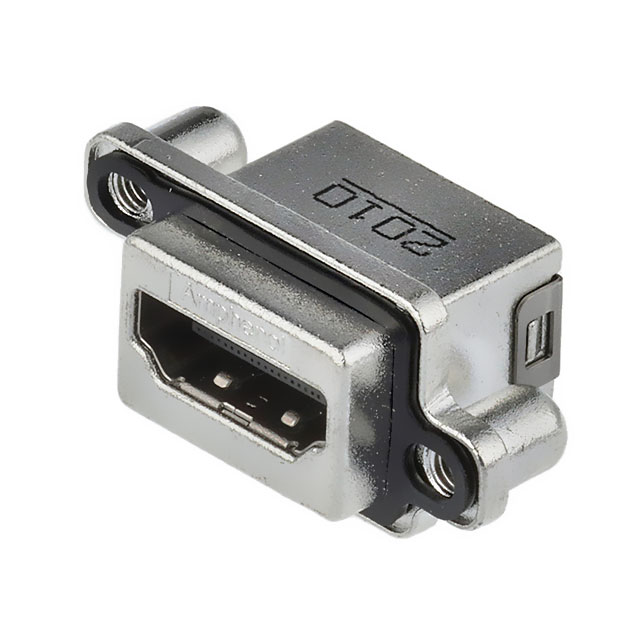

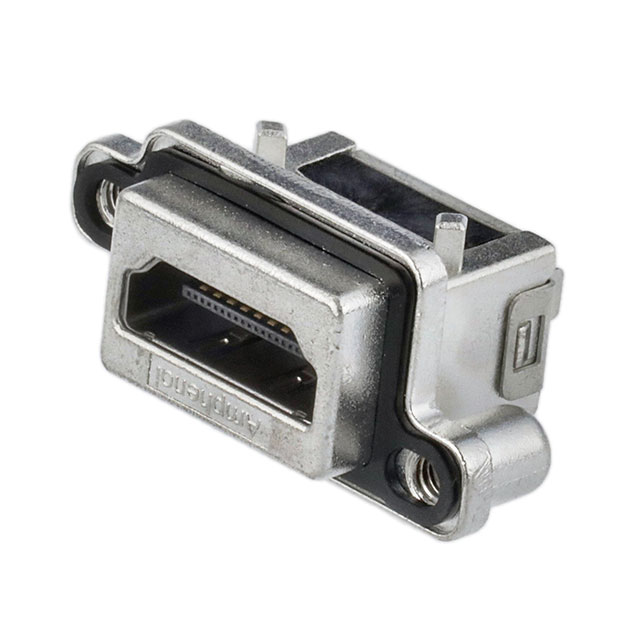

CONN RCPT HDMI 19POS PCB R/A
| Part | Contact Finish | Material Flammability Rating | Shell/Shielding Material | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Ingress Protection | Mounting Type | Connector Type | Voltage - Rated | Number of Contacts | Features | Termination | Mating Cycles | Number of Ports | Mounting Feature | Current Rating (Amps) | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Gold | UL94 V-0 | Zinc Alloy Die Cast | Black | -55 C | 105 ░C | Shielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | HDMI | 40 VAC | 19 | Board Guide | Solder | 10000 | 1 | Flange Vertical | 0.5 A | Receptacle |
 Amphenol ICC (Commercial Products) | Gold | UL94 V-0 | Zinc Alloy Die Cast | Black | -55 C | 105 ░C | Shielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | HDMI | 40 VAC | 19 | Board Guide | Solder | 10000 | 1 | Flange Horizontal | 0.5 A | Receptacle |
 Amphenol ICC (Commercial Products) | Gold | UL94 V-0 | Zinc Alloy Die Cast | Black | -55 C | 105 ░C | Shielded | IP67 - Dust Tight Waterproof | Panel Mount Through Hole | HDMI | 40 VAC | 19 | Board Guide | Solder | 10000 | 1 | Flange Vertical | 0.5 A | Receptacle |
Amphenol ICC (Commercial Products) | Gold | UL94 V-0 | Zinc Alloy Die Cast | Black | -55 C | 105 ░C | Shielded | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | HDMI | 40 VAC | 19 | Board Guide | Solder | 10000 | 1 | Flange Horizontal | 0.5 A | Receptacle |
