140-513 Series

Manufacturer: EDAC Inc.

Catalog

2.0MM PITCH CONNECTOR WITH 13 SU

Part	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Fastening Type	Voltage Rating	Insulation Color	Contact Material	Number of Positions Loaded	Connector Type	Shrouding	Material Flammability Rating	Features	Termination	Mounting Type	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Shape	Note	Contact Termination	Color	Pitch [x]	Pitch [x]

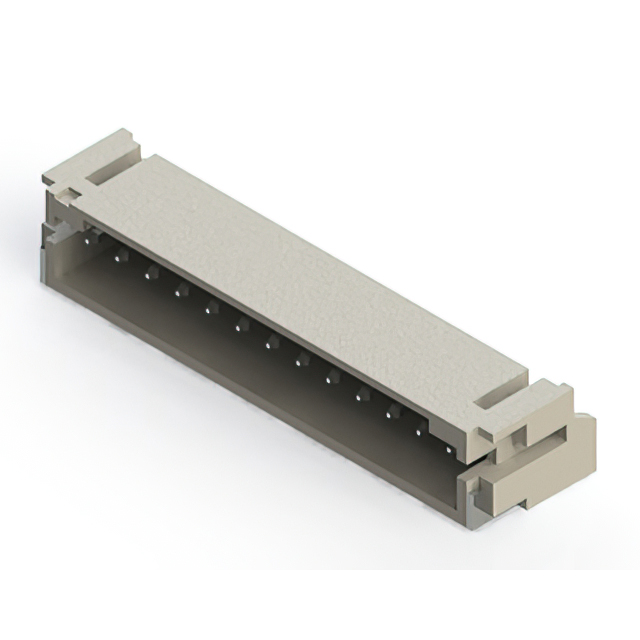

EDAC Inc. 140-513-417-060	Tin	0.079 "	2 mm	Male Pin	1	Detent Lock	100 VAC	Natural	Brass	All	Header	Shrouded - 4 Wall	UL94 V-0	Solder Retention	Solder	Right Angle Surface Mount	0.217 in	5.51 mm	2 A	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	85 °C	-25 °C	13	Square

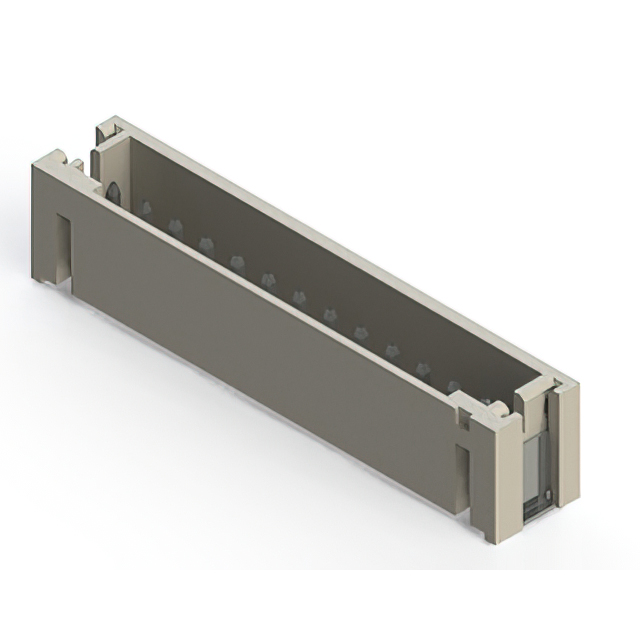

EDAC Inc. 140-513-417-011	Tin	0.079 "	2 mm	Male Pin	1	Detent Lock	100 VAC	Natural	Brass	All	Header	Shrouded - 4 Wall	UL94 V-0	Solder Retention	Solder	Surface Mount	0.217 in	5.51 mm	2 A	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	105 ░C	-40 C	13	Square

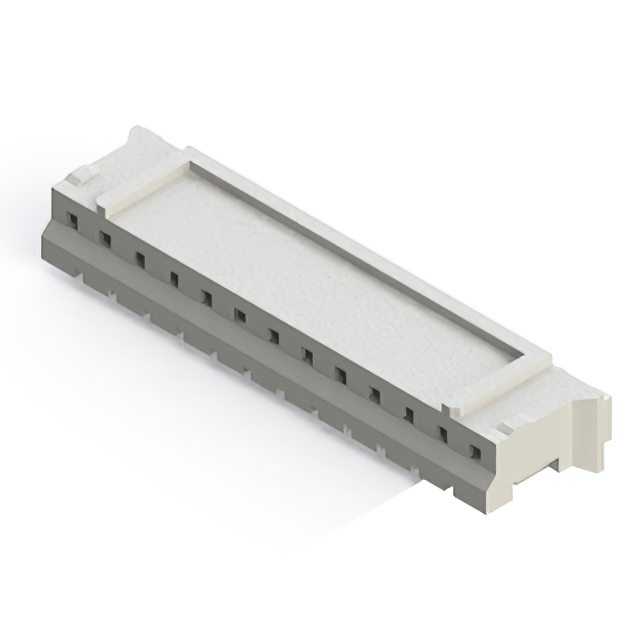

EDAC Inc. 140-513-210-011				Female Socket	1	Detent Lock					Receptacle			Polarizing Key		Free Hanging (In-Line)				Nylon 6/6 Polyamide (PA66)		85 °C	-25 °C	13		Contacts Not Included	Crimp	Natural	0.079 in	2 mm
