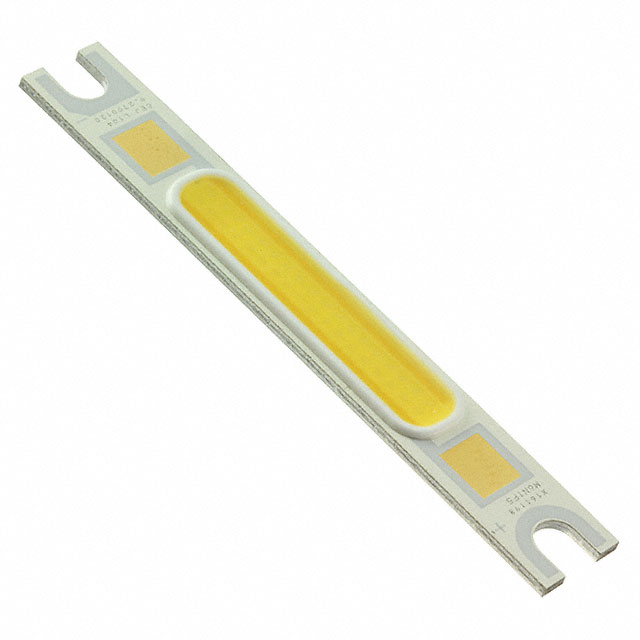

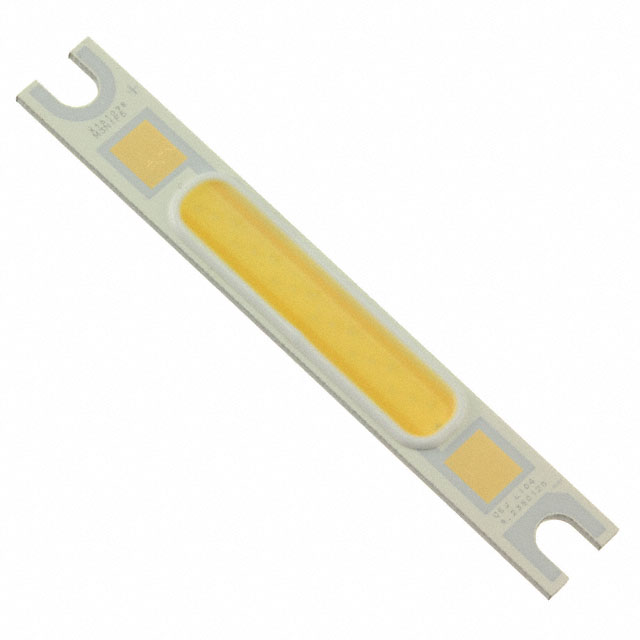

CL-L104 Series

Catalog

LED COB COOL WHT RECT 5000K

Part	CCT (K)	CCT (K)	Height [z]	Voltage - Forward (Vf) (Typ)	Color	Type	Lens Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Configuration	Current - Max [Max]	Current - Test
Citizen Finedevice Co Ltd CL-L104-HC6N1-F5	5000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Cool White	Chip On Board (COB)	Flat	88 lm/W	565 lm	25 °C	7 mm	50 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC3W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Neutral White	Chip On Board (COB)	Flat	99 lm/W	320 lm	25 °C	7 mm	50 mm	85	Rectangle	720 mA	350 mA
Citizen Finedevice Co Ltd CL-L104-HC6W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Neutral White	Chip On Board (COB)	Flat	85 lm/W	550 lm	25 °C	7 mm	50 mm	90	Rectangle	1.44 A

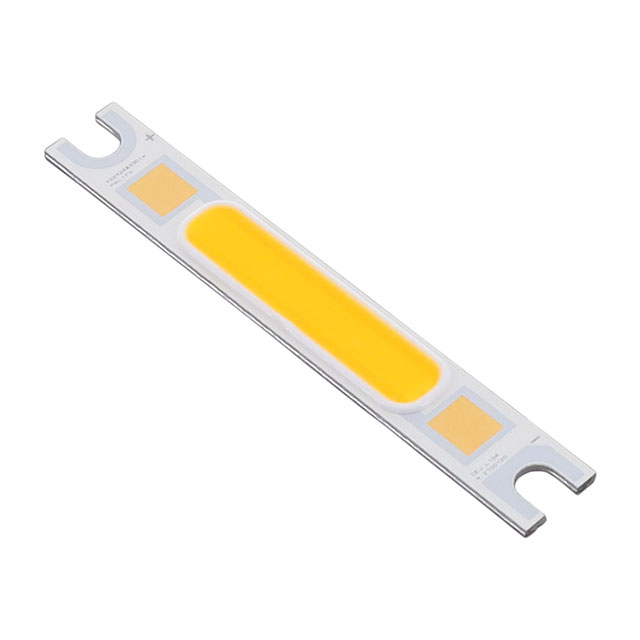

Citizen Finedevice Co Ltd CL-L104-MC6L1-F5	3000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Warm White	Chip On Board (COB)	Flat	95 lm/W	610 lm	25 °C	7 mm	50 mm	85	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-C3N-F	5000 K		1.35 mm	9.2 V	Cool White	Chip On Board (COB)	Flat	120 lm/W	385 lm	25 °C	7 mm	50 mm		Rectangle	720 mA	350 mA
Citizen Finedevice Co Ltd CL-L104-MC3WW1-F5	3500 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Warm White	Chip On Board (COB)	Flat	98 lm/W	315 lm	25 °C	7 mm	50 mm	85	Rectangle	720 mA	350 mA
Citizen Finedevice Co Ltd CL-L104-HC3W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Neutral White	Chip On Board (COB)	Flat	85 lm/W	275 lm	25 °C	7 mm	50 mm	90	Rectangle	720 mA	350 mA
Citizen Finedevice Co Ltd CL-L104-HC6L1-F5	3000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Warm White	Chip On Board (COB)	Flat	81 lm/W	520 lm	25 °C	7 mm	50 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-HC6WW1-F5	3500 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Warm White	Chip On Board (COB)	Flat	82 lm/W	530 lm	25 °C	7 mm	50 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC3N1-F5	5000 K	3-Step MacAdam Ellipse	1.35 mm	9.2 V	Cool White	Chip On Board (COB)	Flat	101 lm/W	325 lm	25 °C	7 mm	50 mm	85	Rectangle	720 mA	350 mA
