TR9CH8330 Series

Catalog

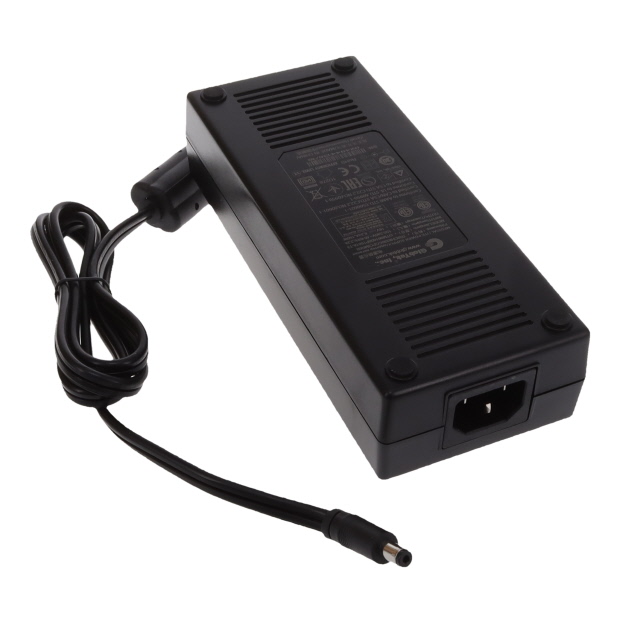

AC/DC DESKTOP ADAPTER 18V 150W

Part	Polarization	Form	Power (Watts)	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Cord Length	Cord Length	Current - Output (Max) [Max]	Efficiency	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Output	Applications	Input Type	Approval Agency	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]
GlobTek, Inc. TR9CH8330CCPCIMR6B	Positive Center	Desktop (Class I)	150 W	150 mW	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1 m	39.4 in	8.33 A	CoC Tier 2 Level VI	International	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	18 V	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	IEC 320-C14	264 VAC	90 VAC	40 °C	-10 °C
GlobTek, Inc. TR9CH8330LCPCIMR6B	Positive Center	Desktop (Class I)	150 W	150 mW	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1 m	39.4 in	8.33 A	CoC Tier 2 Level VI	International	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	18 V	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	IEC 320-C14	264 VAC	90 VAC	40 °C	-10 °C
