500ASSP1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE SPDT 3A 120V
| Part | Actuator Material | Switch Travel | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Actuator Type | Mounting Type | Actuator Length [x] | Termination Style | Switch Function | Circuit | Contact Timing | Current Rating (Amps) | Contact Finish | Features | Voltage Rating - AC | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

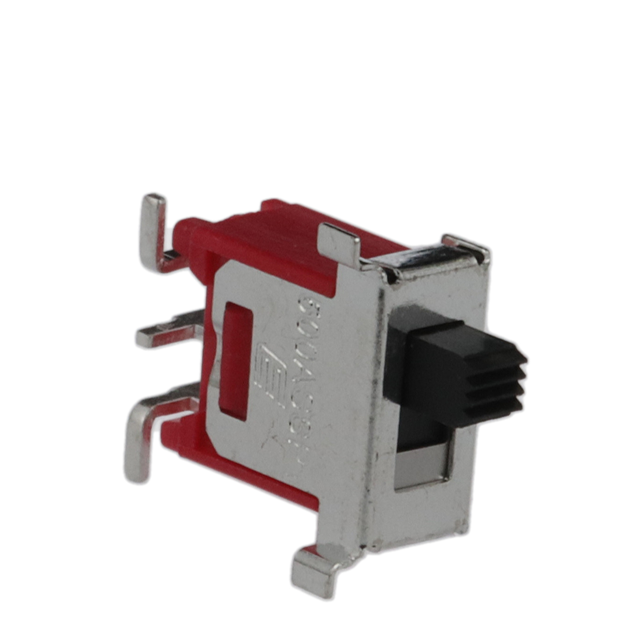

 E-Switch | Polyamide (PA) Nylon | 3.05 mm | 30000 Steps | 30000 Cycles | 85 °C | -30 ░C | 28 V | Standard | Right Angle Surface Mount | 3.1 mm | Gull Wing | On-On | SPDT | Not Specified | 3 A | Silver | Epoxy Sealed Terminals | 120 V | Copper Alloy |

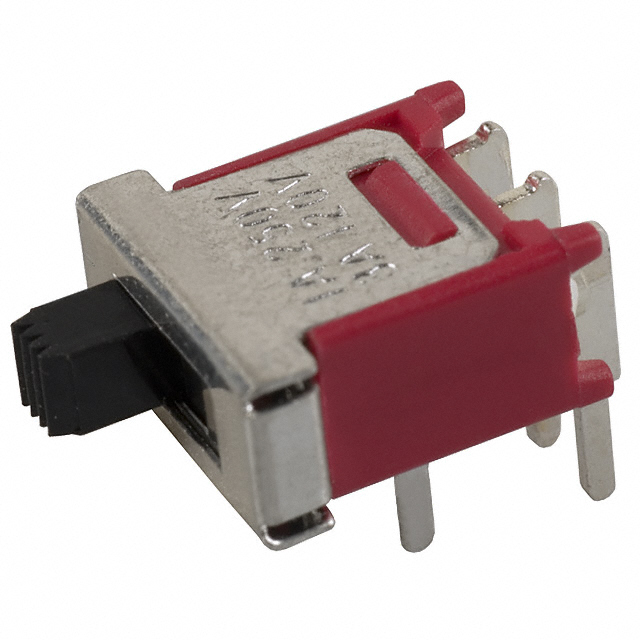

 E-Switch | Polyamide (PA) Nylon | 3.05 mm | 30000 Steps | 30000 Cycles | 85 °C | -30 ░C | 28 V | Standard | Right Angle Through Hole | 3.1 mm | PC Pin | On-On | SPDT | Not Specified | 3 A | Silver | Epoxy Sealed Terminals | 120 V | Copper Alloy |

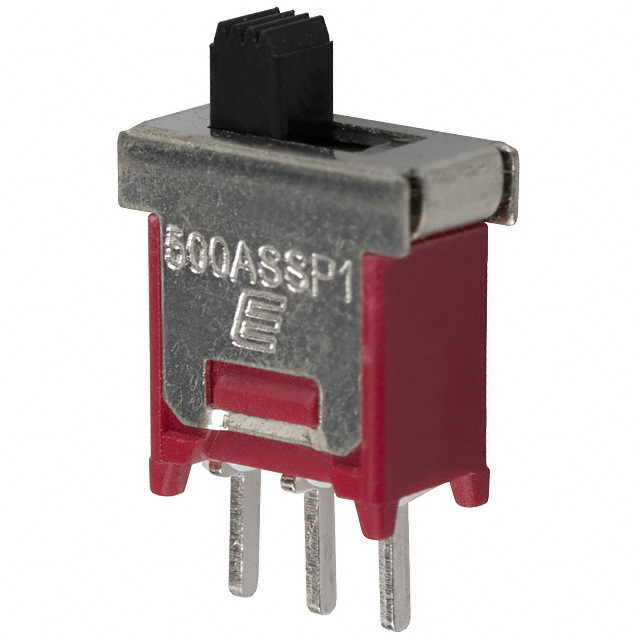

 E-Switch | Polyamide (PA) Nylon | 3.05 mm | 30000 Steps | 30000 Cycles | 85 °C | -30 ░C | 28 V | Standard | Through Hole | 3.1 mm | PC Pin | On-On | SPDT | Not Specified | 3 A | Silver | Epoxy Sealed Terminals | 120 V | Copper Alloy |

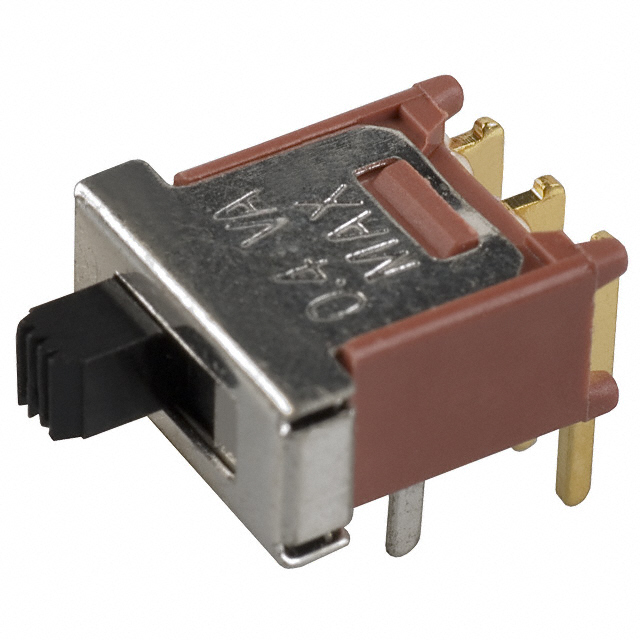

 E-Switch | Polyamide (PA) Nylon | 3.05 mm | 30000 Steps | 30000 Cycles | 85 °C | -30 ░C | 20 V | Standard | Right Angle Through Hole | 3.1 mm | PC Pin | On-On | SPDT | Not Specified | 0.4 VA | Gold | Epoxy Sealed Terminals | 20 V | Copper Alloy |
