SC22-05 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 7MH, 5A ROHS COMPLIANT: YES

Part	Number of Lines	Package / Case	Mounting Type	Inductance @ Frequency	Voltage Rating - AC	Filter Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max) [Max]
KEMET SC22-05-70JH	2	4 PC Pin Horizontal	Through Hole	7 mH	250 V	Power Line	250 V	120 °C	-40 C	5 A	1.102 in	28 mm

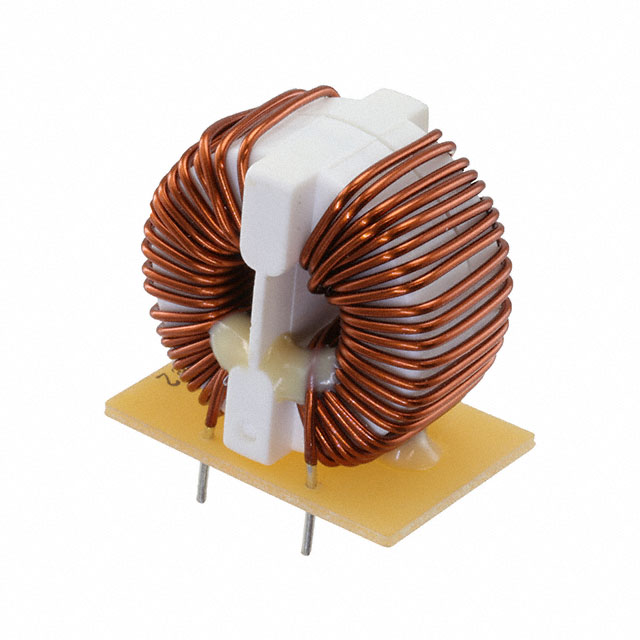

KEMET SC22-05-30J	2	Vertical 4 PC Pin	Through Hole	3 mH 10 kHz	250 V	Power Line	250 V	120 °C	-40 C	5 A			1.102 "	28 mm	18.5 mm	0.728 in	29 mm	1.142 in	50 mOhm

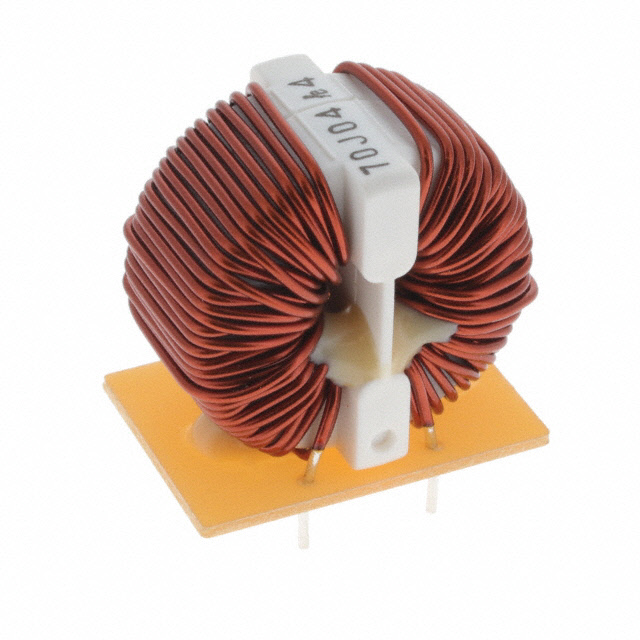

KEMET SC22-05-70J	2	Vertical 4 PC Pin	Through Hole	7 mH	250 V	Power Line	250 V	120 °C	-40 C	5 A			1.102 "	28 mm	18.5 mm	0.728 in	29 mm	1.142 in	60 mOhm
