0712-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

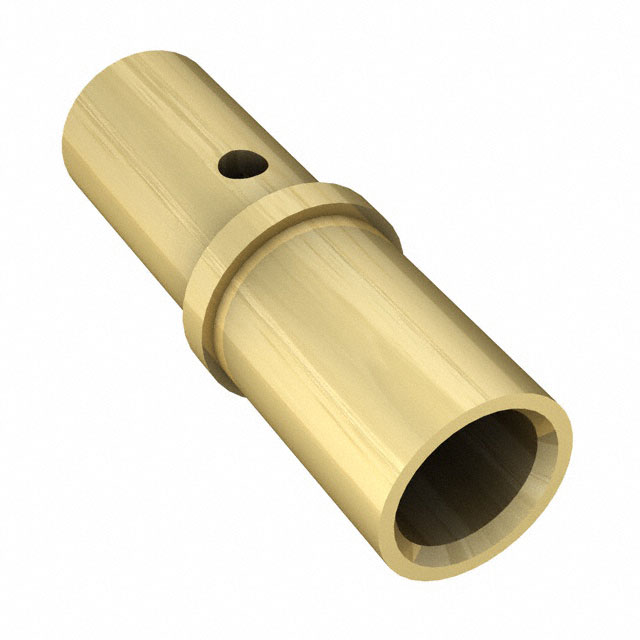

CONN PIN RCPT .084-.102 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Material | Socket Depth [z] | Socket Depth [z] | Tail Type | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | 13.16 mm | 0.518 in | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | Gold | 4.57 mm | 0.18 in | Solder | Beryllium Copper | 0.21 in | 5.33 mm | Crimp | 0.122 in | 3.1 mm |
