29082 Series
Manufacturer: Phoenix Contact
Beta
⌘K

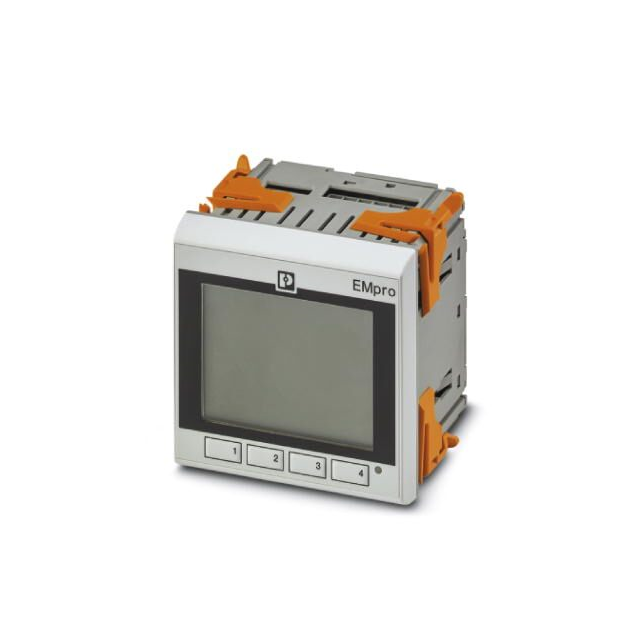

PANEL-MOUNT ENERGY METER WITH DI
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Display Type | Mounting Type | Termination Style | Voltage - Supply [Min] | Voltage - Supply [Max] | Measuring Type | Ingress Protection | Type | Measuring Range [Min] | Measuring Range [Max] | Coil Resistance | Contact Material | Approval Agency | Coil Voltage | Relay Type | Coil Current | Features | Contact Form | Contact Rating (Current) | Release Time | Coil Type | Switching Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 55 °C | -10 °C | Backlight LCD - Black Characters | Panel Mount | Screw Terminal | 100 VAC 150 VDC | 250 VDC 400 VAC | Current (3-Phase) Voltage Wattage | IP54 - Dust Protected Water Resistant | Energy Monitor | 0 A 35 VAC | 5 A 690 VAC | |||||||||||||
 Phoenix Contact | 50 °C | -20 ░C | DIN Rail | Spring Terminal | 800 Ohms | Silver Nickel (AgNi) | CE UKCA UL | 24 VDC | General Purpose | 0.03 A | Diode Lighted Indicator Socket Included | DPDT (2 Form C) | 6 A | 10 ms | Non Latching | 250 VAC 250 VDC | 10 ms |
