WP25D-P0 Series

Catalog

CONN PLUG 28POS SMD GOLD

Part	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Connector Type	Number of Rows [custom]	Mated Stacking Heights	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features

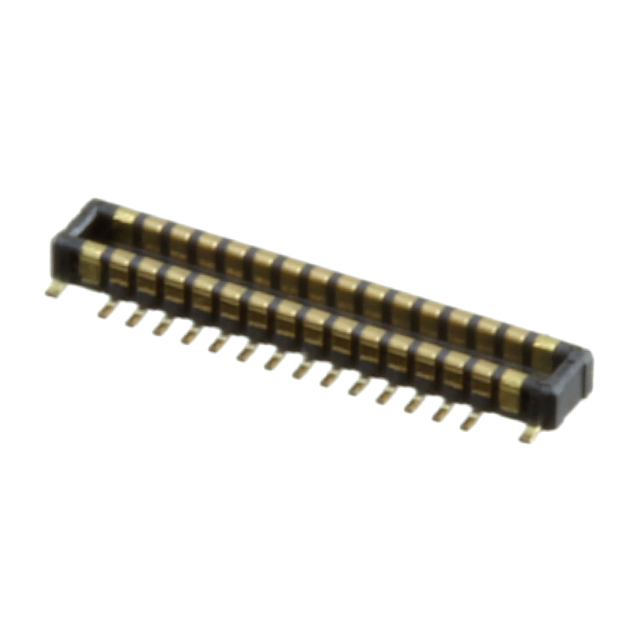

JAE Electronics WP25D-P028VA1-R8000	Gold	0.57 mm	0.022 in	Surface Mount	0.014 in	0.35 mm	Plug Outer Shroud Contacts	2	0.7 mm	28	0.1 Ám	4 Áin	Solder Retention

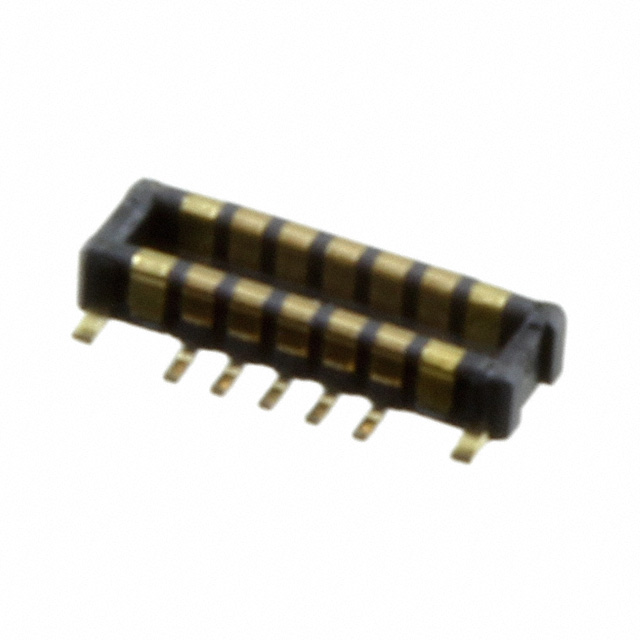

JAE Electronics WP25D-P010VA1-R8000	Gold	0.57 mm	0.022 in	Surface Mount	0.014 in	0.35 mm	Plug Outer Shroud Contacts	2	0.7 mm	10	0.1 Ám	4 Áin	Solder Retention
JAE Electronics WP25D-P038VA1-R8000	Gold	0.57 mm	0.022 in	Surface Mount	0.014 in	0.35 mm	Plug Outer Shroud Contacts	2	0.7 mm	38	0.1 Ám	4 Áin	Solder Retention
