68491 Series

Catalog

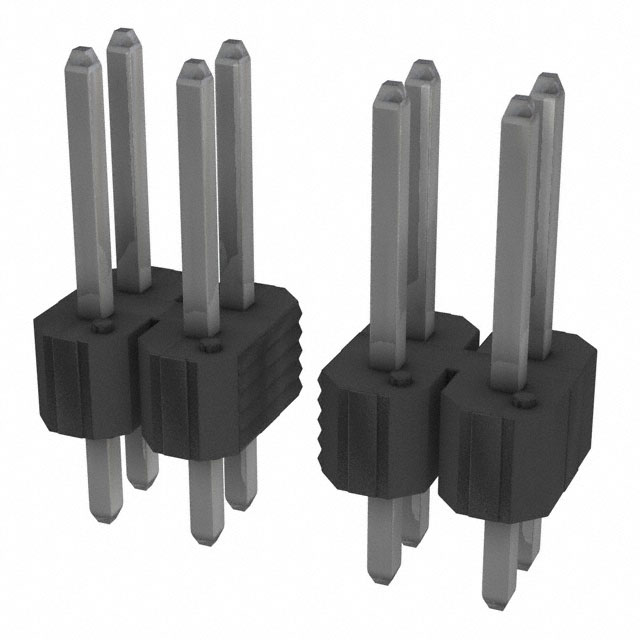

CONN HEADER VERT 72POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Material	Shrouding	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Connector Type	Contact Finish - Mating
Amphenol ICC (FCI) 68491-472HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	72	Header

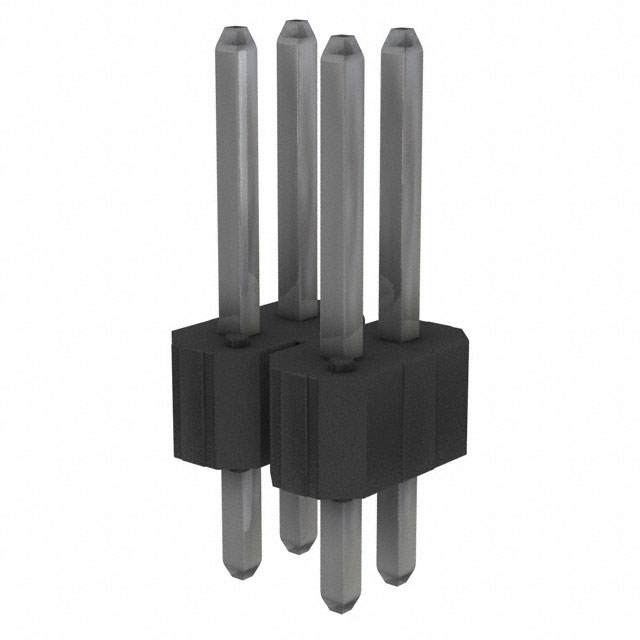

Amphenol ICC (FCI) 68491-404HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	4	Header

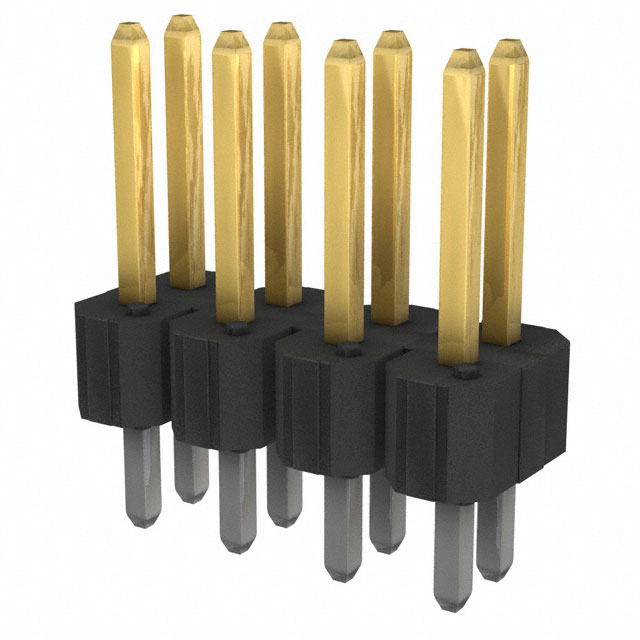

Amphenol ICC (FCI) 68491-108HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded		0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	8	Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68491-132HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded		0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68491-434HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	34	Header
Amphenol ICC (FCI) 68491-432HALF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square		Header
Amphenol ICC (FCI) 68491-408HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	8	Header
Amphenol ICC (FCI) 68491-122HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded		0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	22 positions	Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68491-406HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square	6	Header
Amphenol ICC (FCI) 68491-432HLF	0.1 in	2.54 mm	Through Hole	Black	0.255 in	6.48 mm	Solder	0.12 in	3.05 mm	3 A	All	2.54 mm	0.1 in	UL94 V-0	Phosphor Bronze	Unshrouded	Tin	0.1 in	2.54 mm	Push-Pull	2.54 çm	100 çin	Male Pin	2	12.07 mm	0.475 in	-65 ░C	130 °C	Square		Header
