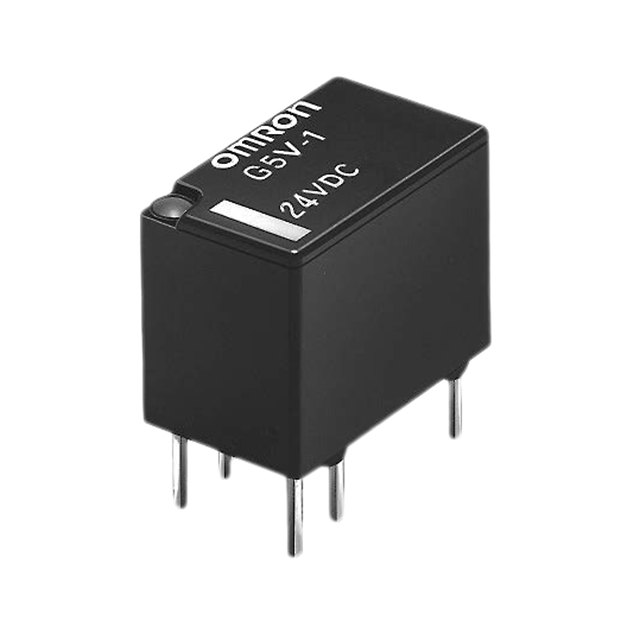

G5V-1-T Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 1A 24V
| Part | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Contact Material | Coil Current | Termination Style | Seal Rating | Switching Voltage [Max] | Mounting Type | Coil Type | Release Time | Must Release Voltage | Relay Type | Coil Voltage | Approval Agency | Load - Max Switching | Contact Form | Coil Resistance | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 ms | 90 °C | -40 °C | 1 A | Gold (Au) Silver (Ag) | 6.3 mA | PC Pin | Sealed - Fully | 60 VDC 125 VAC | Through Hole | Non Latching | 5 ms | 2.4 VDC | General Purpose | 24 VDC | CSA UR | 60 W 125 VA | SPDT (1 Form C) | 3.84 kOhms | 16.8 VDC |
Omron Electronics Inc-EMC Div | 5 ms | 90 °C | -40 °C | 1 A | Gold (Au) Silver (Ag) | 30 mA | PC Pin | Sealed - Fully | 60 VDC 125 VAC | Through Hole | Non Latching | 5 ms | 0.5 VDC | General Purpose | 5 VDC | CSA UR | 60 W 125 VA | SPDT (1 Form C) | 167 Ohms | 3.5 VDC |
Omron Electronics Inc-EMC Div | 5 ms | 90 °C | -40 °C | 1 A | Gold (Au) Silver (Ag) | PC Pin | Sealed - Fully | 60 VDC 125 VAC | Through Hole | Non Latching | 5 ms | 1.2 VDC | General Purpose | 12 VDC | CSA UR | 60 W 125 VA | SPDT (1 Form C) | 960 Ohms | 8.4 VDC |
