ESA00 Series

Catalog

CONN PLG HSG FMALE 12POS INLINE

Part	Includes	Includes Total Count	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Fastening Type	Housing Color	Shielding	Mounting Type	Note	Features	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Number of Positions	Insert Material	Material Flammability Rating	Type	Contact Shape
TE Intercontec ESA002N00320001000	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Plug Housing	-20 °C	130 °C	Zinc Die Cast	Push-Twist	Black Silver	Shielded	Free Hanging (In-Line)	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Keyed	12	Nylon PA PBT Polyamide Polybutylene Terephthalate	UL94 V-0	For Female Sockets	Circular

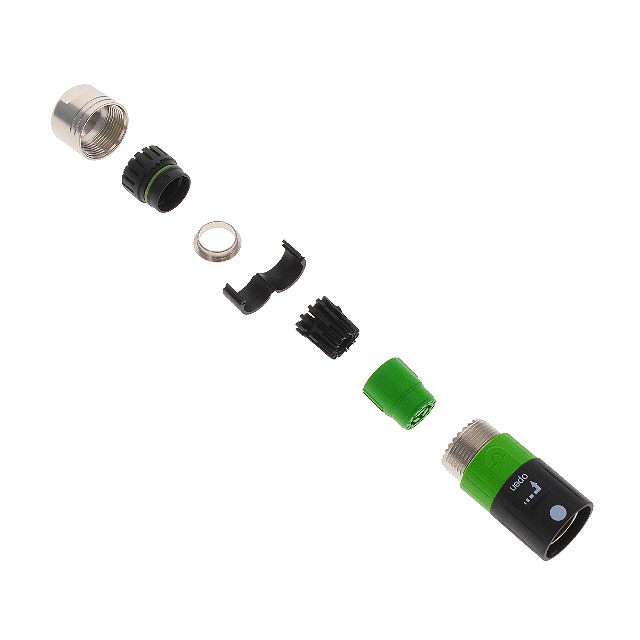

TE Intercontec ESA002N00310001000	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Plug Housing	-20 °C	130 °C	Zinc Die Cast	Push-Twist	Black Silver	Shielded	Free Hanging (In-Line)	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Keyed	12	Nylon PA PBT Polyamide Polybutylene Terephthalate	UL94 V-0	For Female Sockets	Circular
