MX340 Series

Catalog

CONN RCPT HSG 28POS 2.20MM

Part	Note	Contact Termination	Pitch	Pitch	Mounting Type	Connector Type	Number of Positions	Color	Number of Rows [custom]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type	Row Spacing	Row Spacing	Number of Rows
JAE Electronics MX34028SF1	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	28	Black	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket	Latch Holder

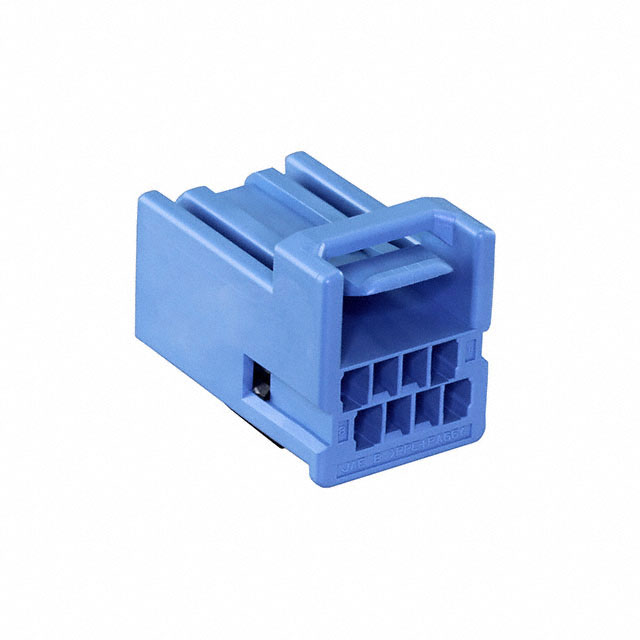

JAE Electronics MX34008SF4	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	8	Blue	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket	Latch Holder	3 mm	0.118 "

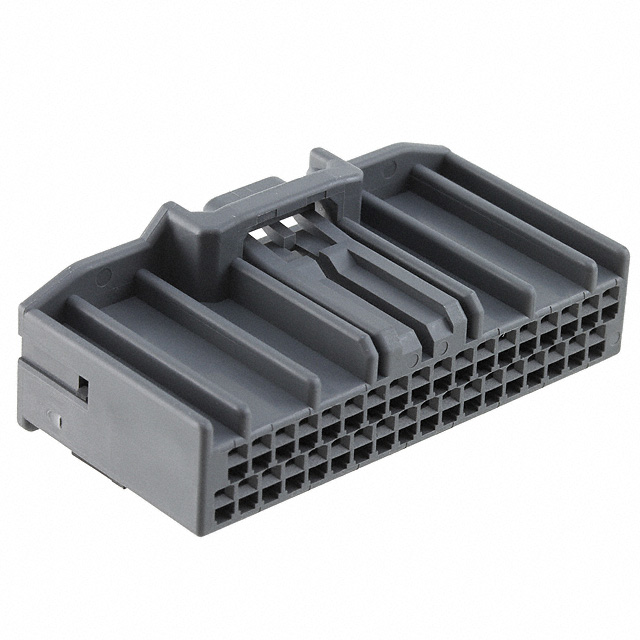

JAE Electronics MX34036SF1	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	36	Gray	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket		3 mm	0.118 "
JAE Electronics MX34036SF4	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	36	Black	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket	Latch Holder	3 mm	0.118 "

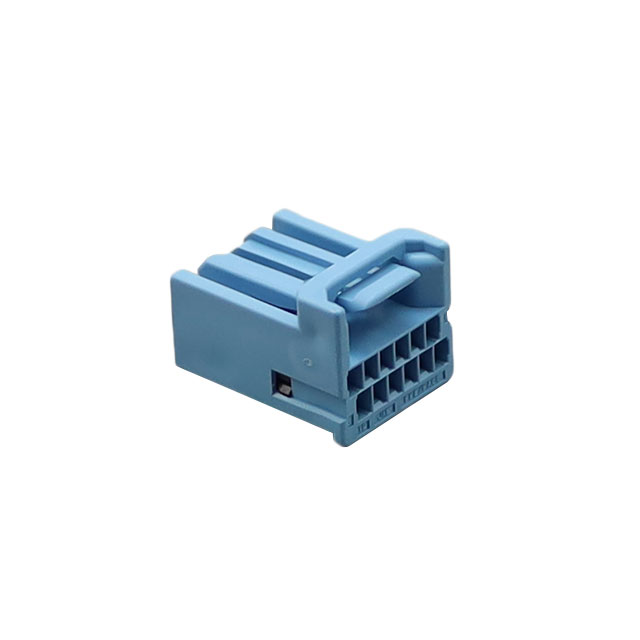

JAE Electronics MX34012SF4	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	12	Blue	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket	Latch Holder	3 mm	0.118 "
JAE Electronics MX34005SF1	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	5	Gray		Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket				1
JAE Electronics MX34032SF1	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle		Gray	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket		3 mm	0.118 "
JAE Electronics MX34017SFA	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle		Gray		Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket

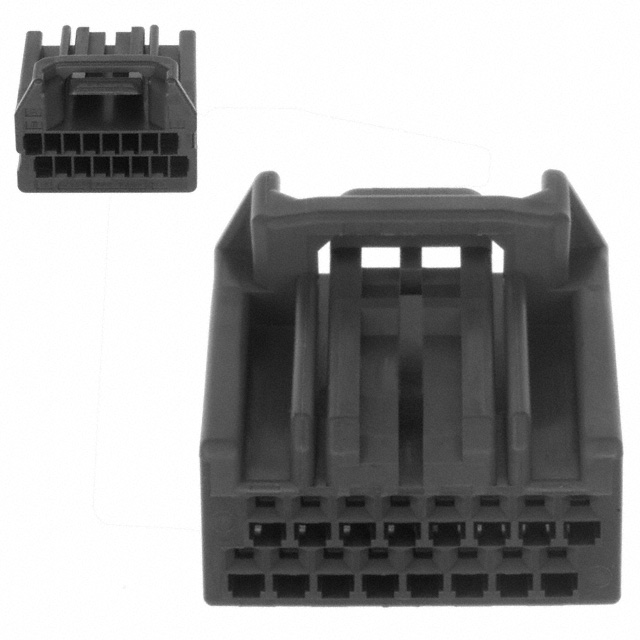

JAE Electronics MX34016SF1	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle	16	Gray	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket		3 mm	0.118 "

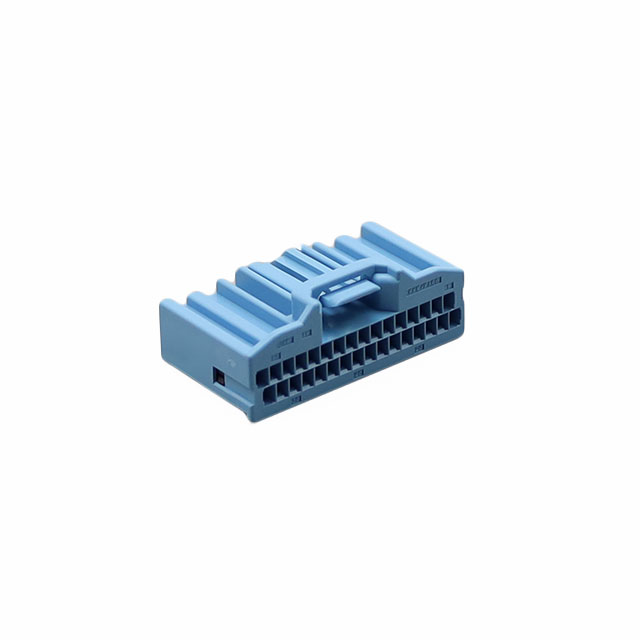

JAE Electronics MX34032SF4	Contacts Not Included	Crimp	2.2 mm	0.087 in	Free Hanging (In-Line)	Receptacle		Blue	2	Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	Female Socket	Latch Holder	3 mm	0.118 "
